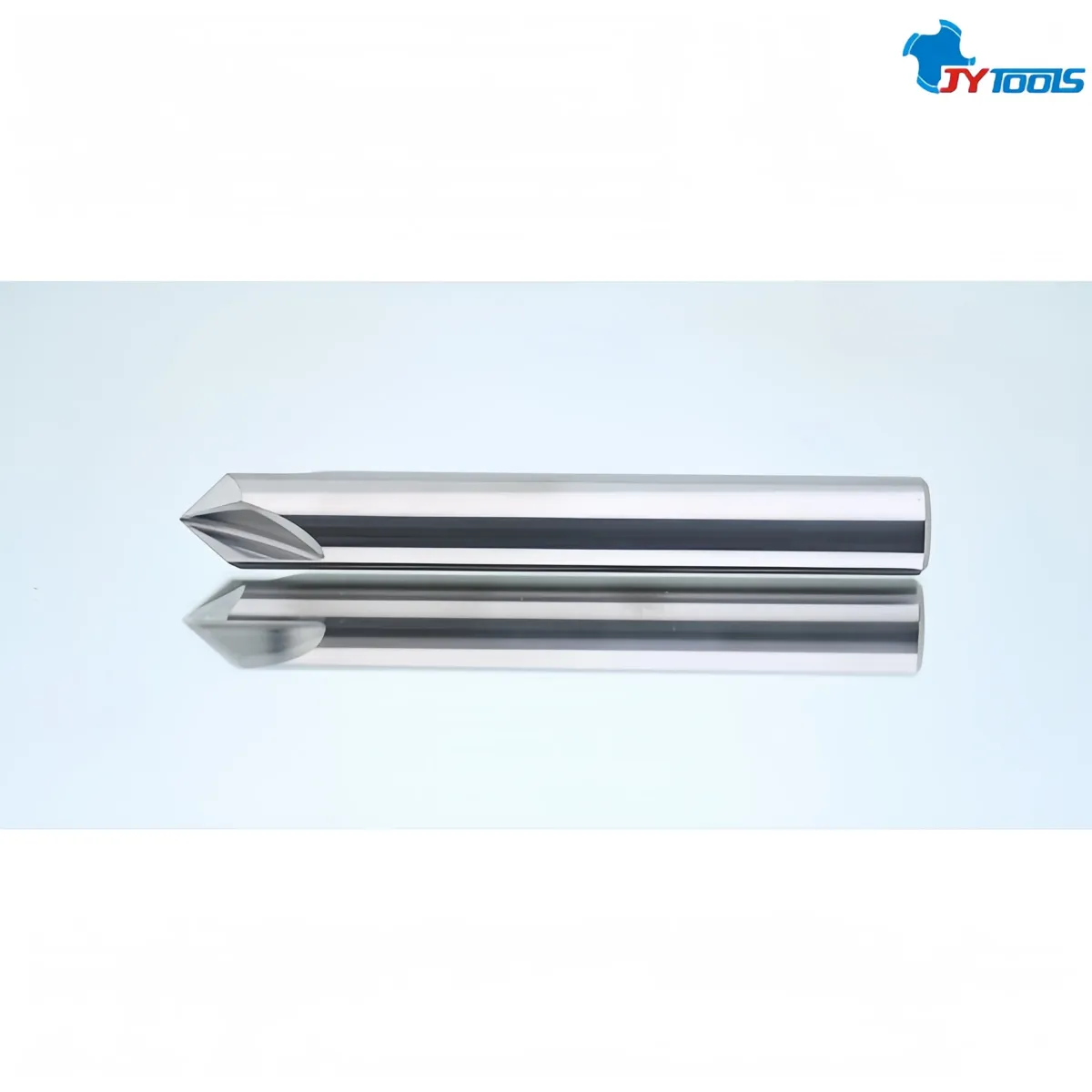

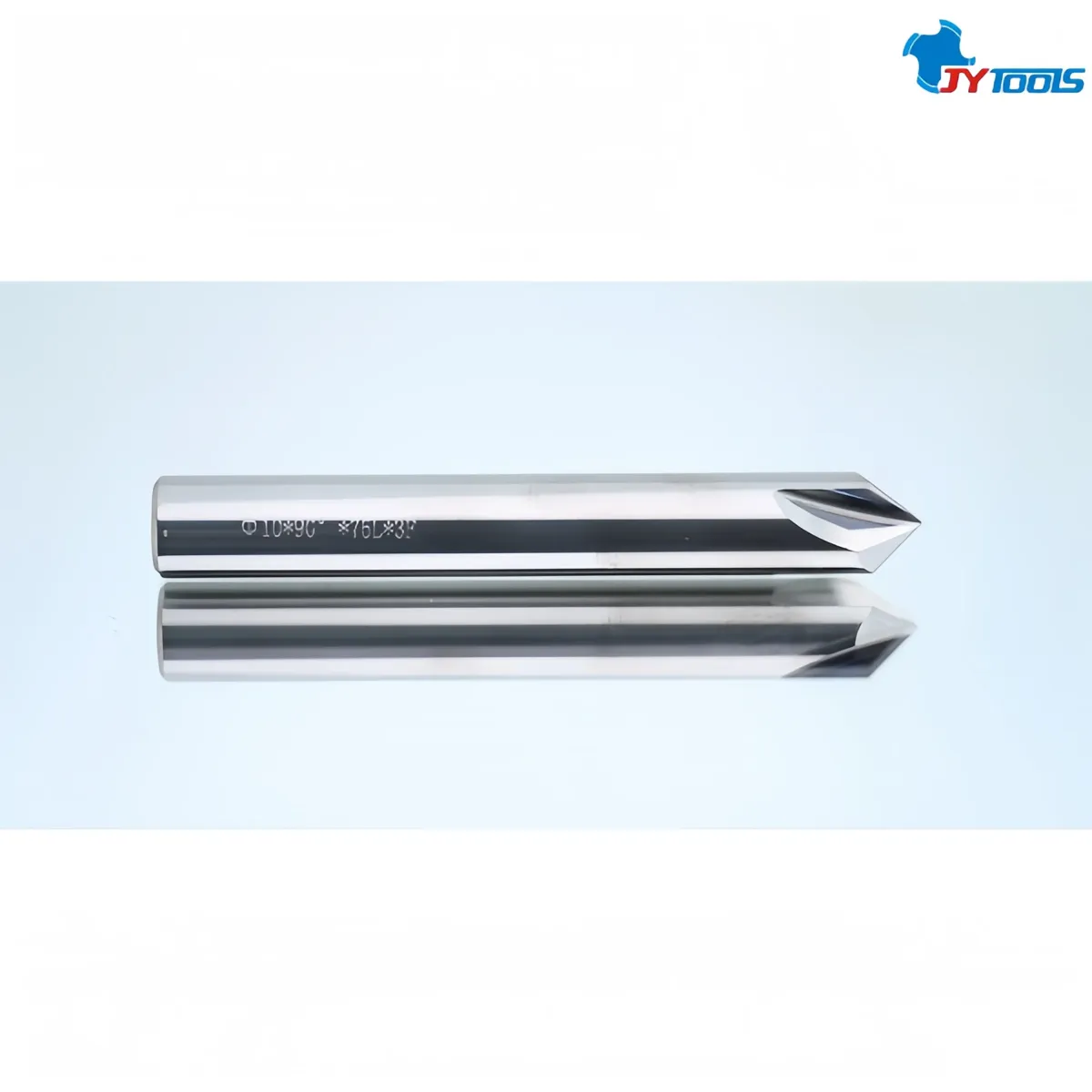

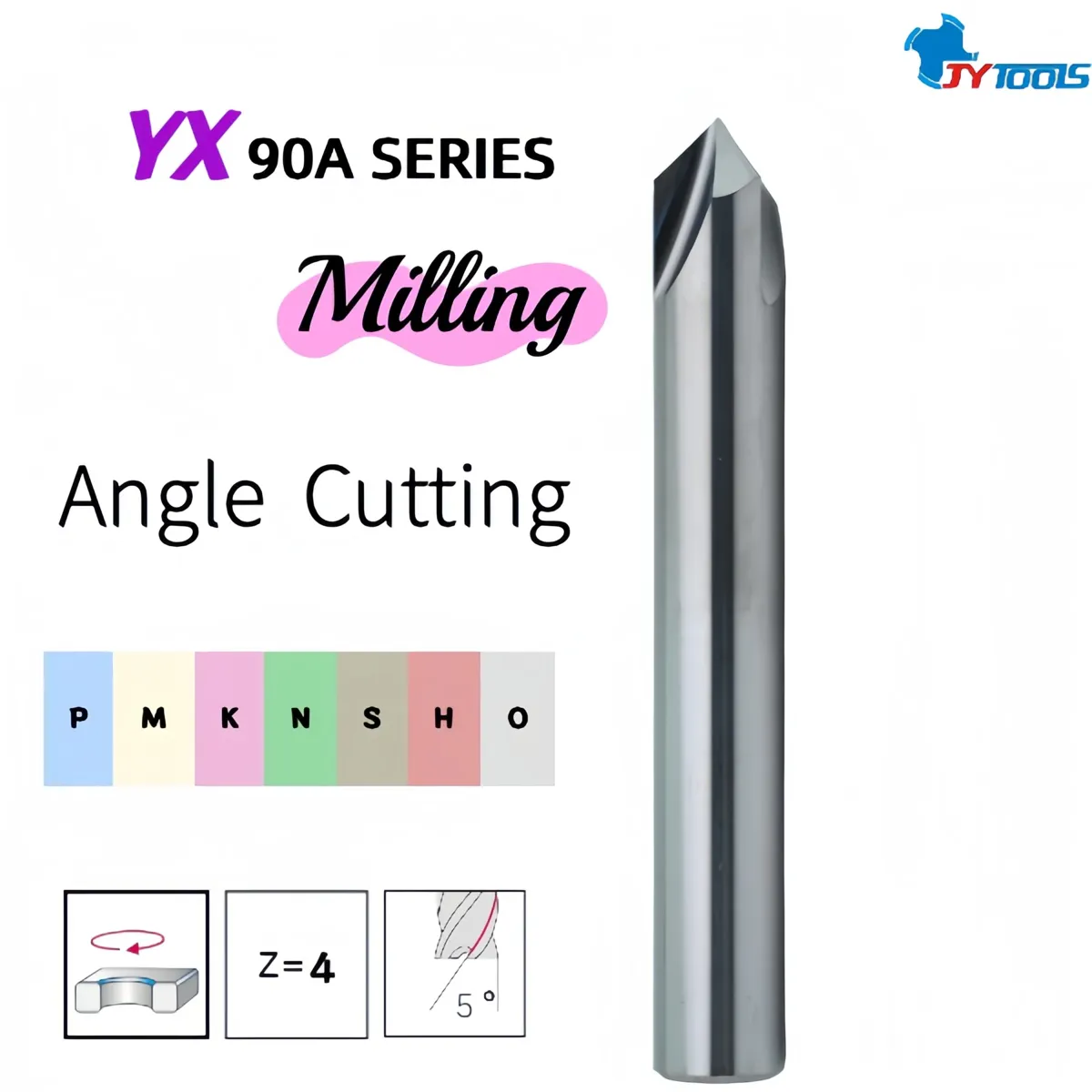

Carbide 90º angle milling cutter
After machining metal parts, the YX90A series often leaves burrs on the cutting edges. Chamfering end mills can quickly remove these burrs, resulting in smoother edges and improving the safety and aesthetics of the workpiece. They are widely used in aerospace, automotive, and mold manufacturing industries. In practice, selecting the appropriate tool type and parameters based on specific machining requirements is crucial to ensuring machining quality. Workpieces machined with chamfering end mills have smooth, clean edges, eliminating burrs and sharp edges. This improves performance in hard materials, making it a good choice for various applications.
| Part number | YX90A |
|---|---|
| Material | Ultrafine Tungsten Carbide Alloy |
| Product Name | 3-Flute Tungsten Carbide Chamfering End Mill – 90º |
| OEM / ODM | Made to your samples or drawings |
| Specifications | Ø6.0 × 60L × Ø6.0 × 3X |
| Packaging (mm) | 12.5 × 12.5 × 69L |
| Blade Diameter D | Ø6.0mm |
| Blade Length H | 10.0mm |
| Shank diameter d | Ø6.0mm |
| Overall Length L | 60.0mm |
| Coating | None / TiXSiN |
| MOQ | 2 pcs |
| Lead time | 1 week |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
The cutting edge is ultra-precision ground, achieving an angle accuracy of ±0.05°. Excellent corner retention ensures stable, long-term machining of high-precision chamfers.
The tool surface is mirror-polished, resulting in a friction coefficient as low as 0.25, effectively suppressing built-up edge formation, making it particularly suitable for high-gloss machining of aluminum alloys.
The substrate has a hardness of up to HRC63, combining high hardness and toughness, with twice the chipping resistance of ordinary chamfering cutters.
Chamfering end mills are suitable for various materials, including steel, stainless steel, aluminum, copper, and plastics, with different tool materials available depending on the material.
Improves assembly accuracy, especially in scenarios involving threaded holes or pre-welding chamfering, effectively preventing assembly interference and welding defects.
Chamfering end mills can quickly complete edge trimming and chamfering, significantly reducing machining time.
Send your workpiece material and cutter dimensions. We supply standard end mills and special milling cutters made to your samples or drawings.
