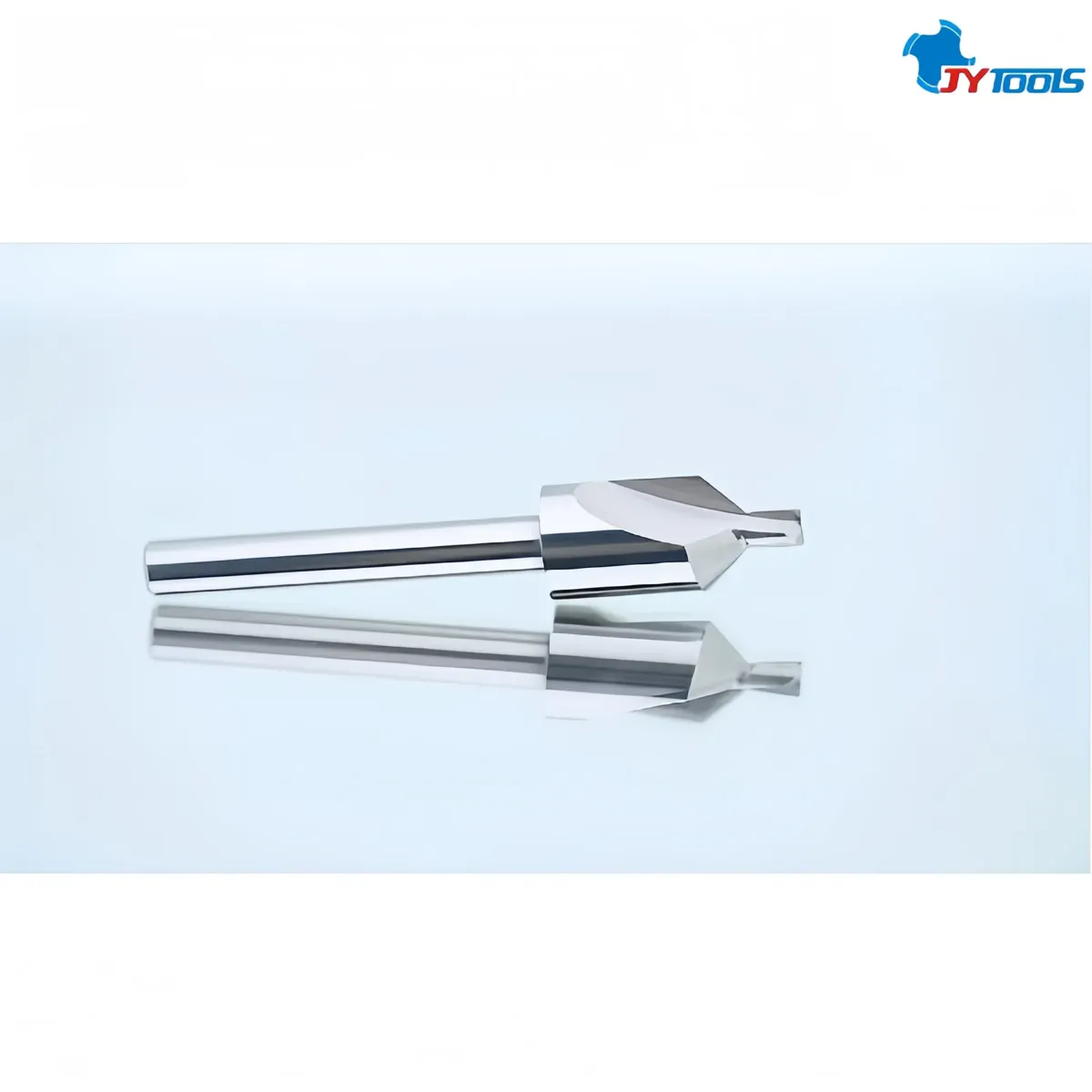

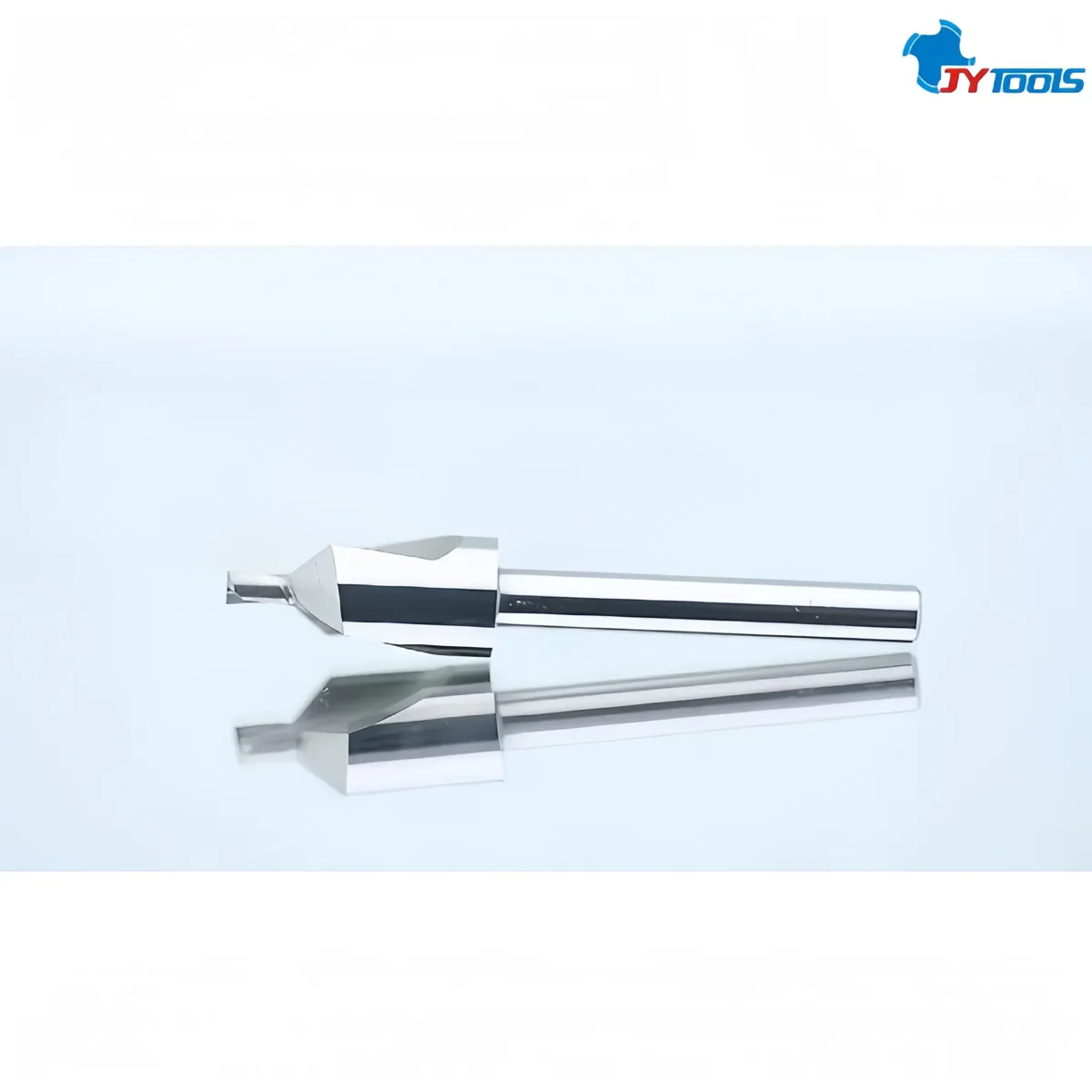

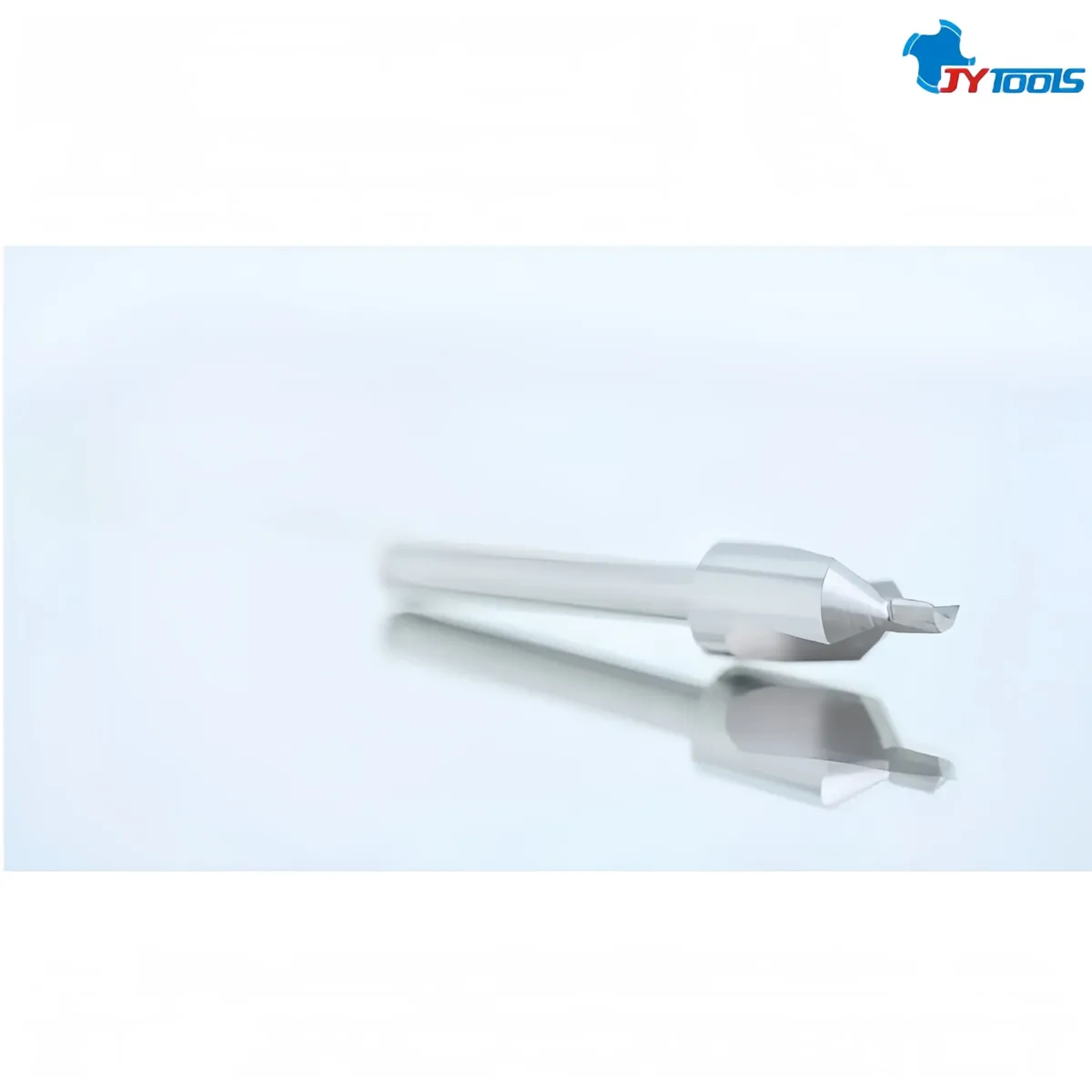

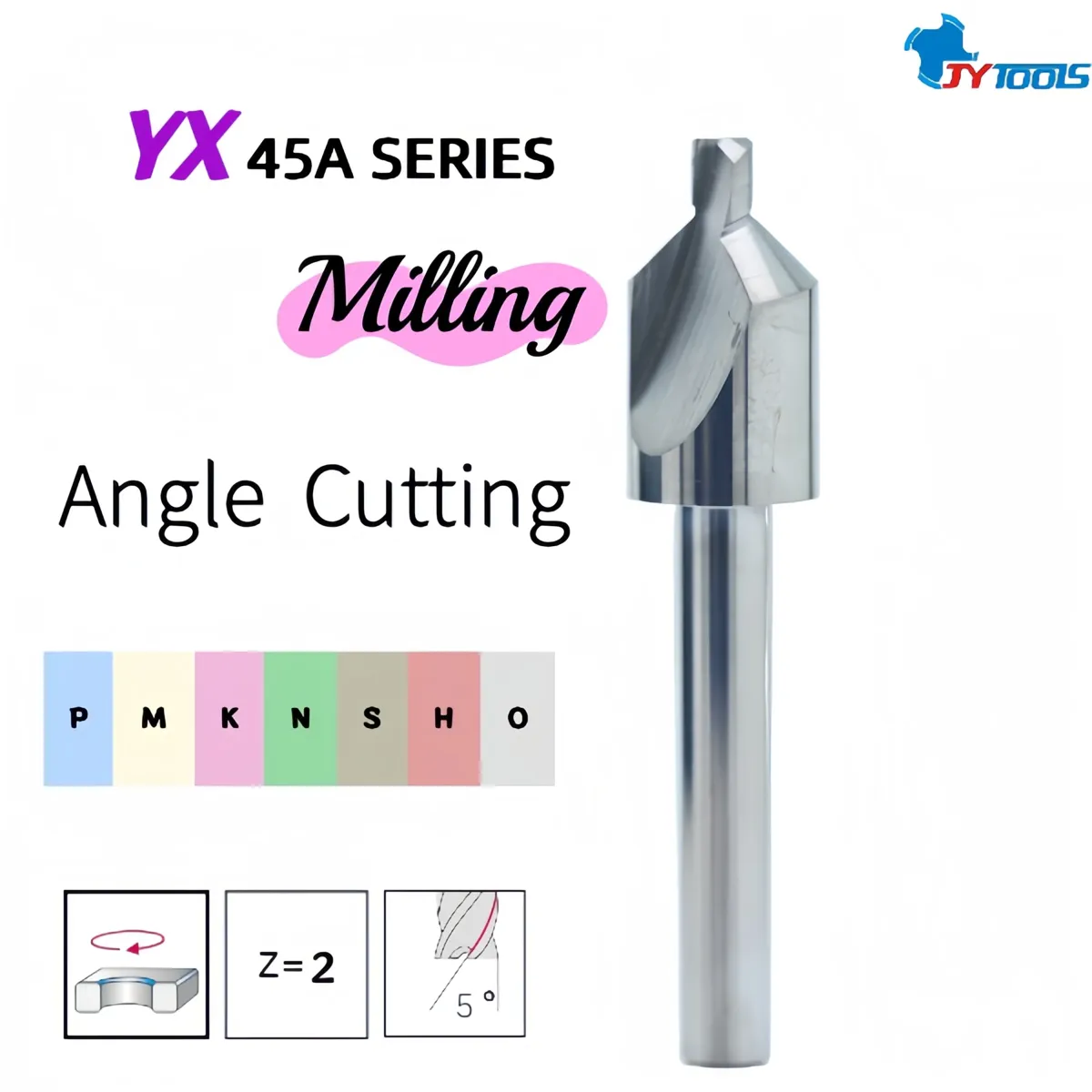

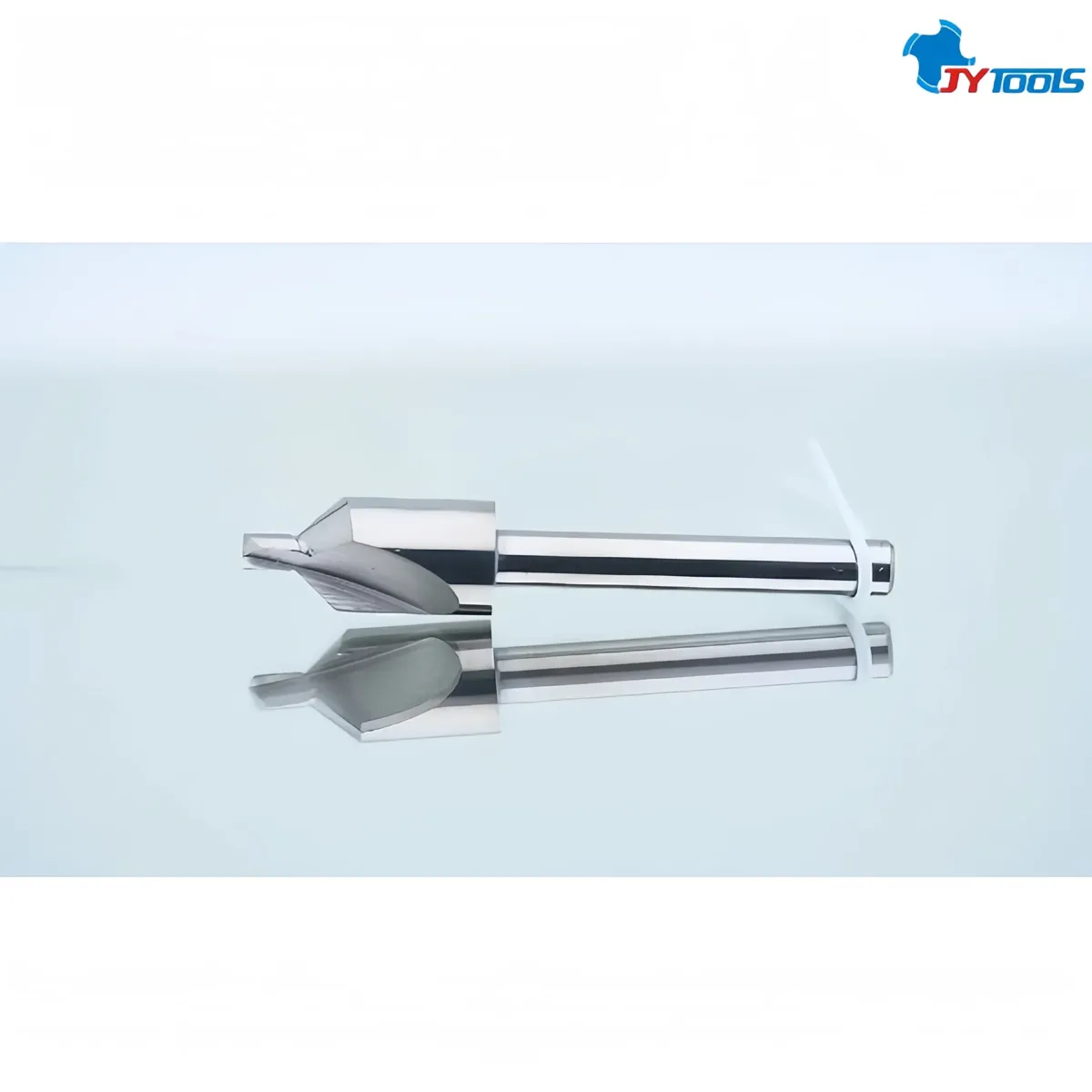

The YX45 series is a professional-grade cutting tool specifically designed for 45° chamfering of general-purpose non-metallic materials. It features a 2-flute, 5° clearance angle and an uncoated, high-gloss cutting edge, making it particularly suitable for machining soft materials such as aluminum alloys and plastics, preventing chip clogging. Cutting materials: Hard/softwood, plastics, MDF, foam, acrylic, polycarbonate, PVC, HDPE, ABS, UHMW, HIPS, PET, polystyrene, polypropylene (PP), polyoxymethylene, and other engineering plastics. Widely used in aerospace, automotive, and furniture manufacturing industries. In practice, selecting the appropriate tool type and parameters based on specific machining requirements is crucial to ensuring machining quality.
| Part number | YX45A |
|---|---|
| Material | Ultrafine particle tungsten carbide alloy |
| Product Name | 45° carbide chamfering tool |
| OEM / ODM | Made to your samples or drawings |
| Specifications | Ø6.0 × 60L × Ø6.0 × 1X |
| Packaging (mm) | 12.5 × 12.5 × 69L |
| Blade Diameter D | Ø6.0mm |
| Blade Length H | 10.0mm |
| Shank diameter d | Ø6.0mm |
| Overall Length L | 60.0mm |
| Coating | None / TiXSiN |
| MOQ | 2 pcs |
| Lead time | 1 week |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
Symmetrically distributed double-edged blades ensure uniform distribution of cutting force, improving vibration suppression by 30%, controlling angular accuracy within ±0.05°, and achieving a surface finish below Ra0.4μm.
Utilizing carbide with a grain size ≤0.8μm and a substrate hardness of HRC63, combining high hardness and toughness, offering 35% better chipping resistance than ordinary chamfering tools.
The tool surface undergoes mirror polishing, resulting in a friction coefficient as low as 0.25, effectively suppressing built-up edge formation, making it particularly suitable for high-gloss chamfering of aluminum alloys.
The streamlined chip groove space is 30% larger than ordinary chamfering tools, improving chip removal efficiency by 35% and preventing chip clogging during chamfering.
The uncoated design avoids the risk of coating peeling and provides excellent corrosion resistance, making it suitable for machining in humid environments.
It adopts the DIN6535 standard straight shank and is compatible with various clamps such as ER collets and hydraulic chucks.
Send your workpiece material and cutter dimensions. We supply standard end mills and special milling cutters made to your samples or drawings.
