Step drills and special-profile drills made to your drawings or samples.

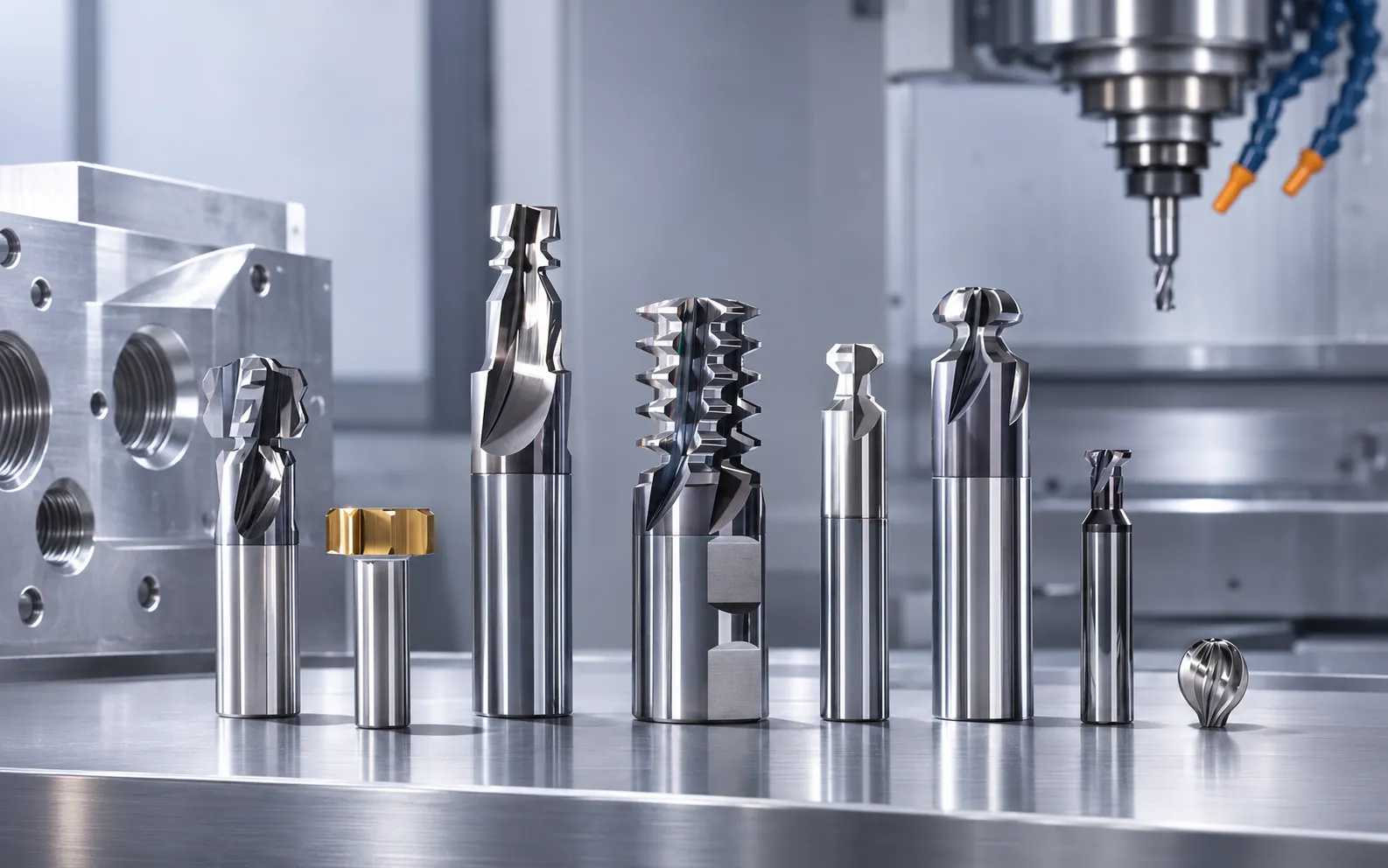

Stepped, Form, and Combination Drills
Custom stepped, form, and combination drills built from your drawing — combining required features in one engineered tool to reduce tool changes and simplify the machining sequence where the application supports it.
Start with the component print and process objective, then confirm what should be combined into one tool.
Machine multiple coaxial diameters with a tool ground to the approved step sequence and dimensions.
Create application-specific profiles using cutting geometry developed from the component feature.
Combine compatible drilling, chamfering, countersinking, or forming operations after engineering review.
Reproduce or improve an existing special tool using its drawing, a usable sample, and current process data.
Send the component drawing, required tolerances and finish, workpiece material, machine and holder details, coolant method, current cycle, expected volume, and any performance issue to solve. JIAYI will review manufacturability and confirm the proposed tool geometry before quotation.
Open any tool for dimensions and drawings, or request a quote for a modified version.
