PCD End Mill High Hardness Non-metallic Special Purpose

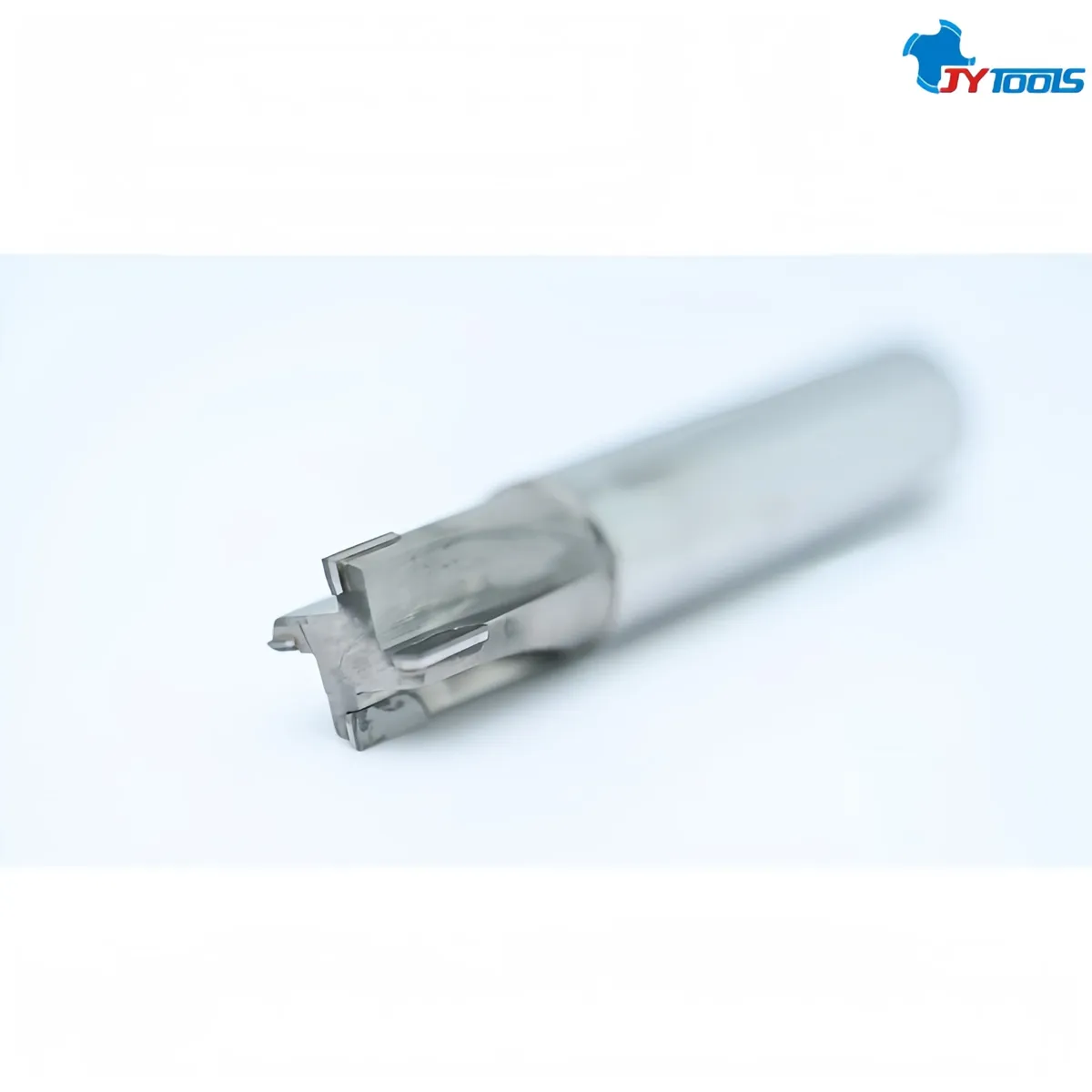

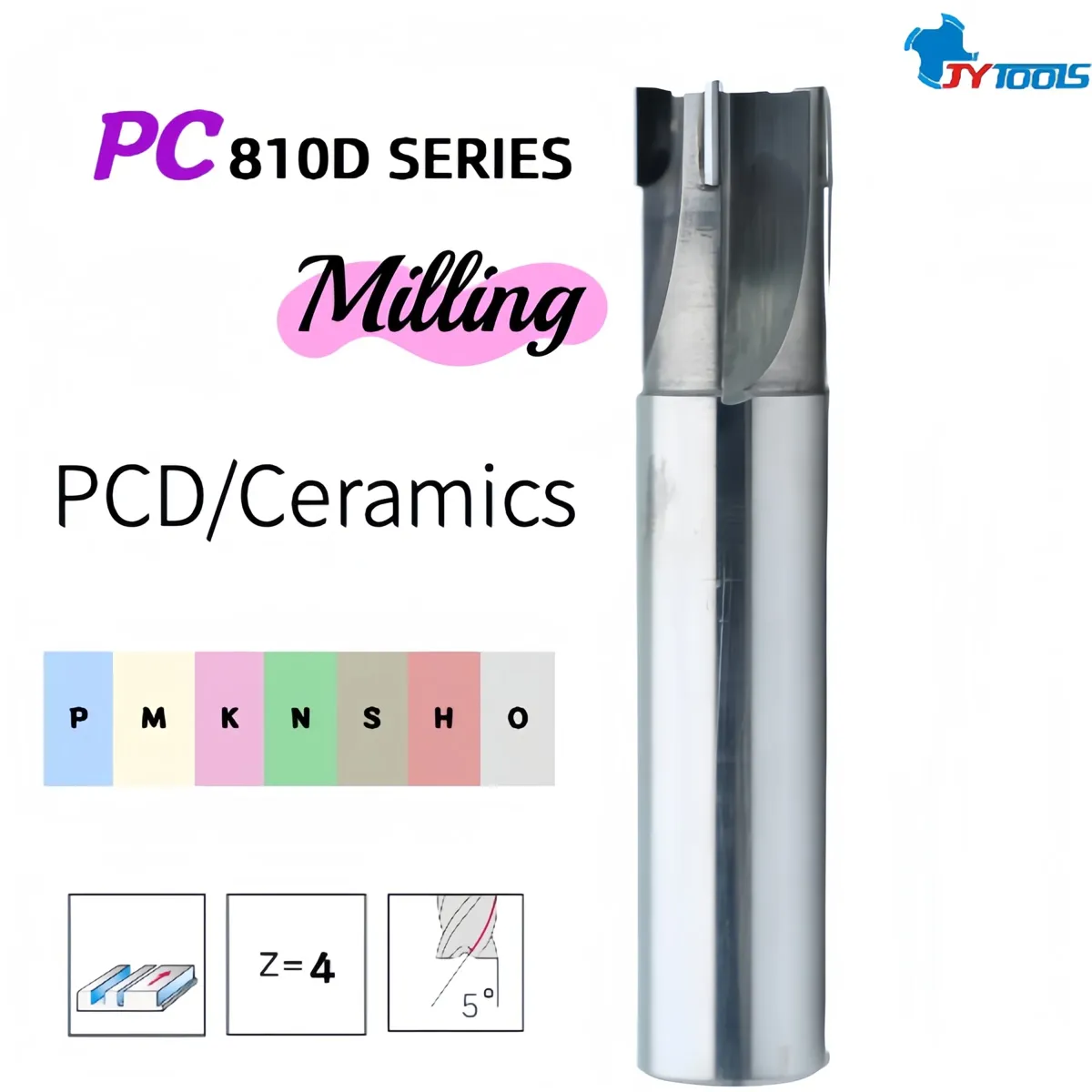

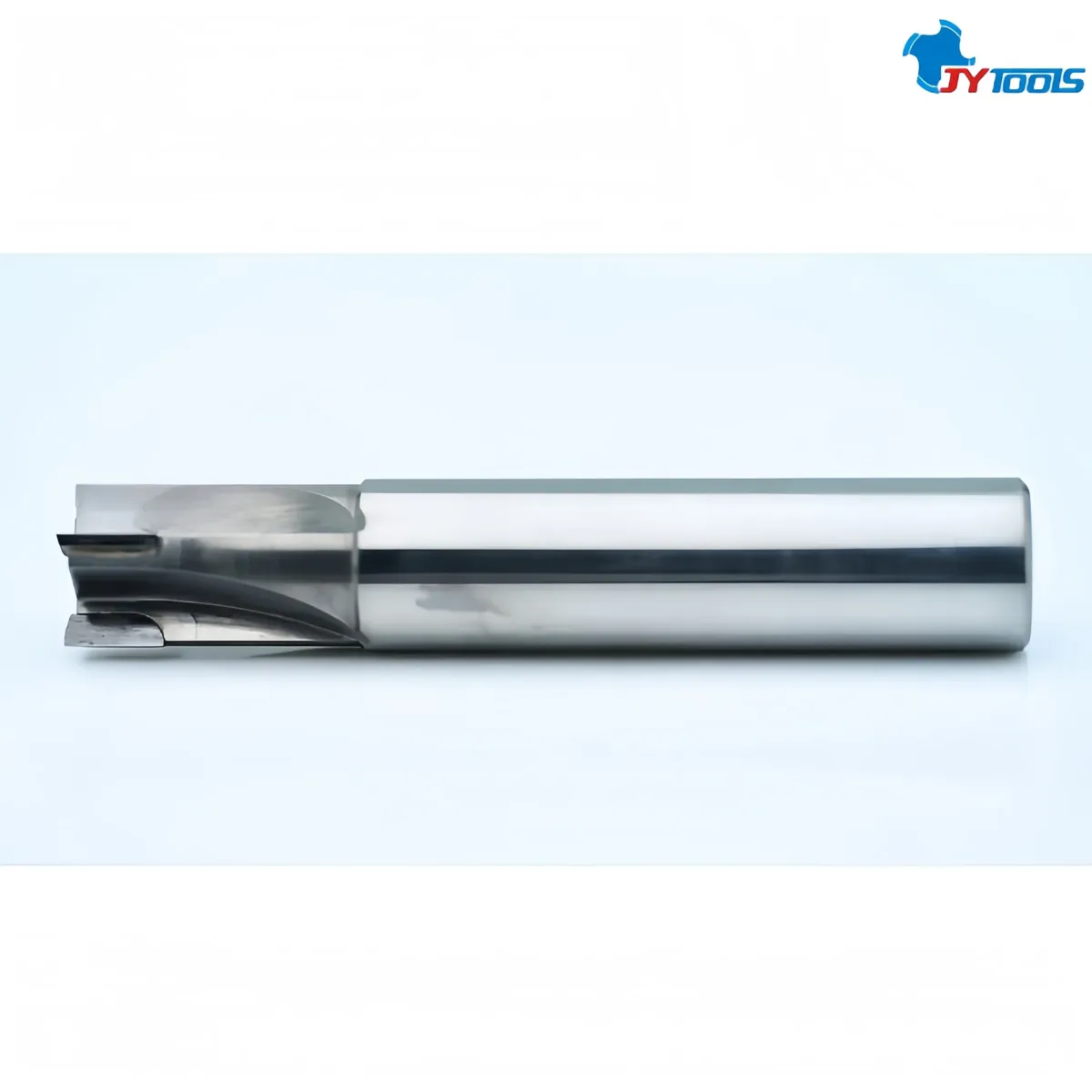

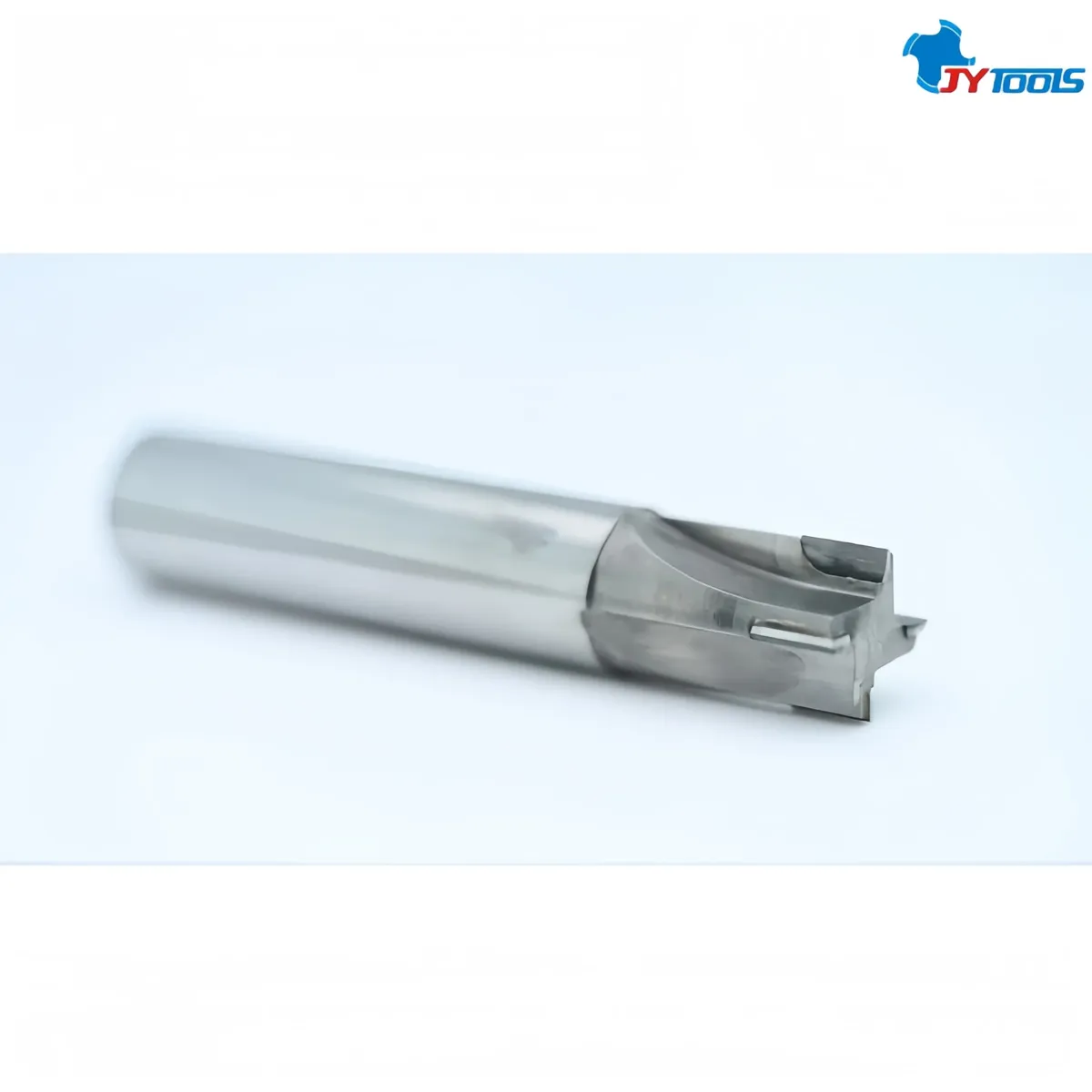

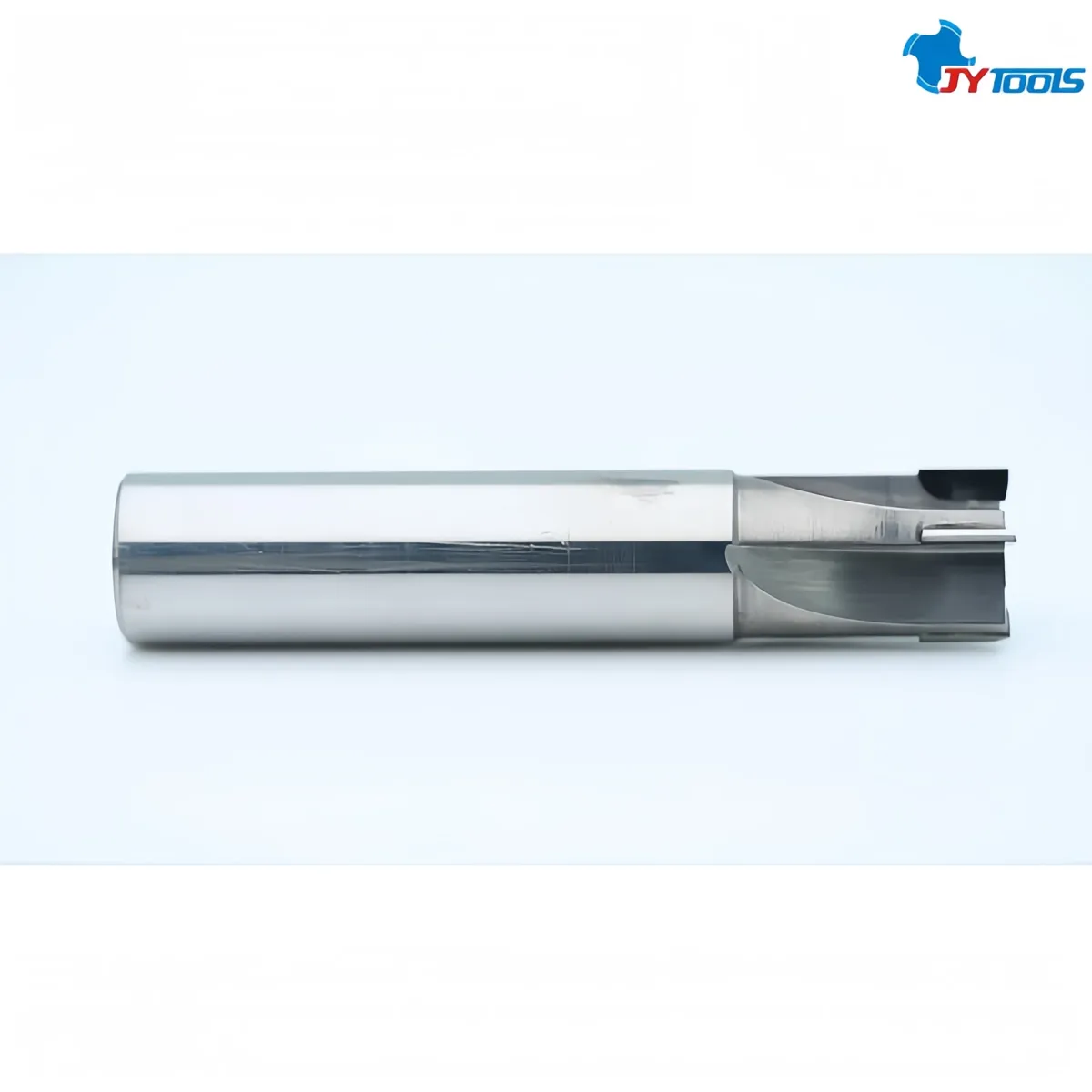

The PC810D series end mills combine strength and superior performance. These professional-grade end mills are specifically designed for machining difficult-to-machine non-metallic materials such as ceramics, graphite, and high-hardness composites. They feature a 4-flute, 5° clearance angle, and polycrystalline diamond (PCD) cutting edge design. Equipped with a carbide shank, they offer ultra-high hardness, exceptional wear resistance, and a mirror-like finish, making them an ideal choice for precision machining in industries such as new energy, semiconductors, and optics. They provide superior performance for machining high-hardness non-metallic materials. This tool features an eccentric removal function to achieve maximum edge strength, improving performance in hard materials and making it a good choice for various applications.
| Part number | PC810D |
|---|---|
| Material | Ultrafine particle tungsten carbide alloy |
| Product Name | 4-flute PCD end mill |
| OEM / ODM | Made to your samples or drawings |
| Specifications | Ø12.0 × 20L × Ø12.0 × 4X |
| Packaging (mm) | 18.5 × 18.5 × 99L |
| Blade Diameter D | Ø12.0mm |
| Blade Length H | 12.0mm |
| Shank diameter d | Ø12.0mm |
| Overall Length L | 50.0mm |
| Coating | None |
| MOQ | 2 pcs |
| Lead time | 1 week |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.

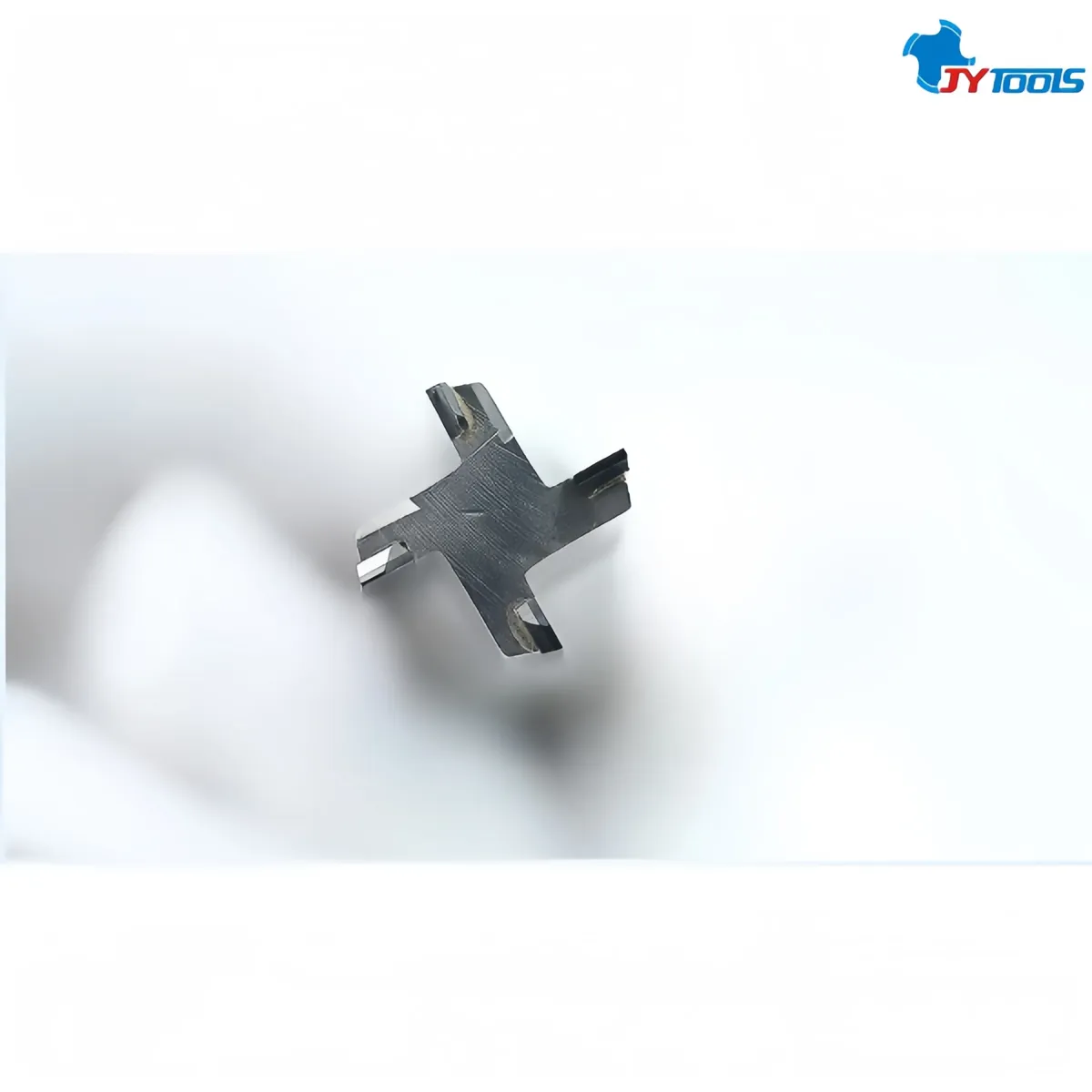

Symmetrically distributed four flutes evenly distribute cutting force, improving vibration suppression by 40% and achieving a surface finish of Ra 0.2μm or less, resulting in a mirror-like effect.
With a hardness of HV10000, 8-10 times that of cemented carbide, and 10-20 times better wear resistance, significantly extending tool life compared to cemented carbide tools.
Optimized small clearance angle cutting edge reduces tool-workpiece friction, lowering the risk of machining chatter marks, especially suitable for finishing brittle materials such as ceramics and graphite.
Utilizes cemented carbide with a grain size ≤0.8μm, offering excellent rigidity and high bending strength, suitable for high-feed machining requirements.
The cutting edge radius is precisely controlled at 0.005mm, balancing sharpness and chipping resistance, adapting to the cutting needs of brittle materials.
Utilizing vacuum high-temperature brazing technology, the PCD cutting edge and tool holder achieve high bonding strength, excellent impact resistance, and prevent cutting edge detachment.
The tool surface is mirror-polished, resulting in a friction coefficient as low as 0.22, effectively suppressing chip adhesion and preventing workpiece scratches.
Send your workpiece material and cutter dimensions. We supply standard end mills and special milling cutters made to your samples or drawings.
