Machine Thread Tap

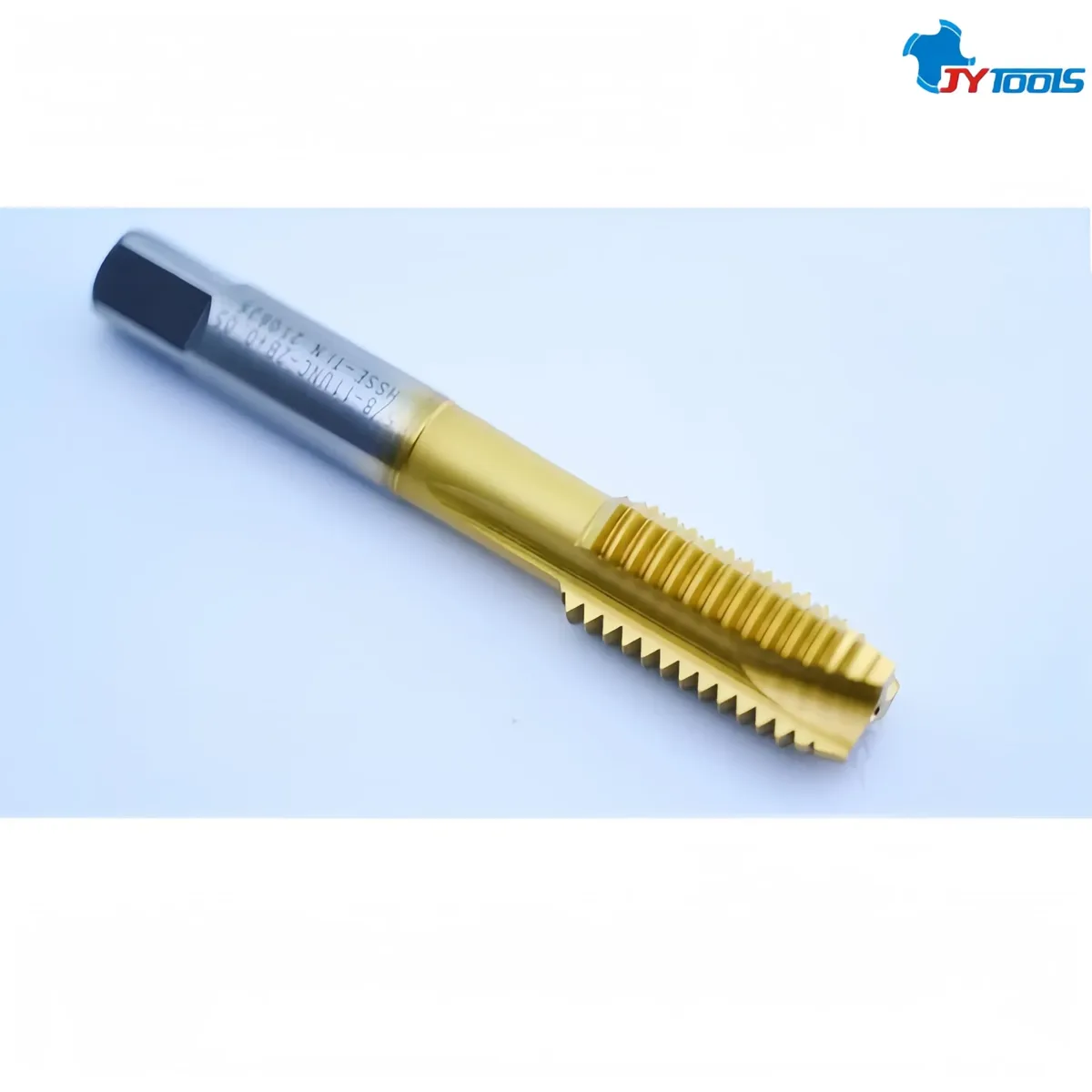

The SP106 is a professional-grade straight flute tap specifically designed for tapping DIN 2189 standard machine threads. Its main advantages lie in its efficient guiding performance, excellent thread accuracy, good chip removal, and stable machining process. It significantly improves machining quality and production efficiency, especially under conditions involving hard materials, precision workpieces, or complex processes. It is particularly suitable for applications in the automotive, aerospace, machinery, and hydraulic industries where high metric or imperial thread accuracy is required. It performs exceptionally well in high-efficiency machining and with complex materials. With repeated use, the tip tap reduces the frequency of tool adjustments and recalibrations, improving machining efficiency and consistency. It reduces vibration during the initial contact of the tap in the hole, ensuring a more precise start to the thread and reducing machining errors.
| Material | HSS-E-PM |
|---|---|
| Lead time | 2 Weeks |
| Cut-out Length L3 | 45.0mm |
| Shank diameter D | Ø19.0mm |
| Overall Length L | 120.0mm |
| Coating | TiCN-CPM |
| MOQ | 2 pcs |
Design details engineered for accuracy, tool life and process stability.
Grinded using a high-precision thread grinder, the thread profile accuracy is controlled within ±0.01mm, and the thread surface finish can reach below Ra0.4μm, ensuring the accuracy of German standard thread connections.
Coatings such as TiAlN, TiCN, TAD, TiN, and DLC are available, with coating hardness up to HV3400 and a friction coefficient as low as 0.15. Tool life is extended by 2-3 times compared to uncoated taps.

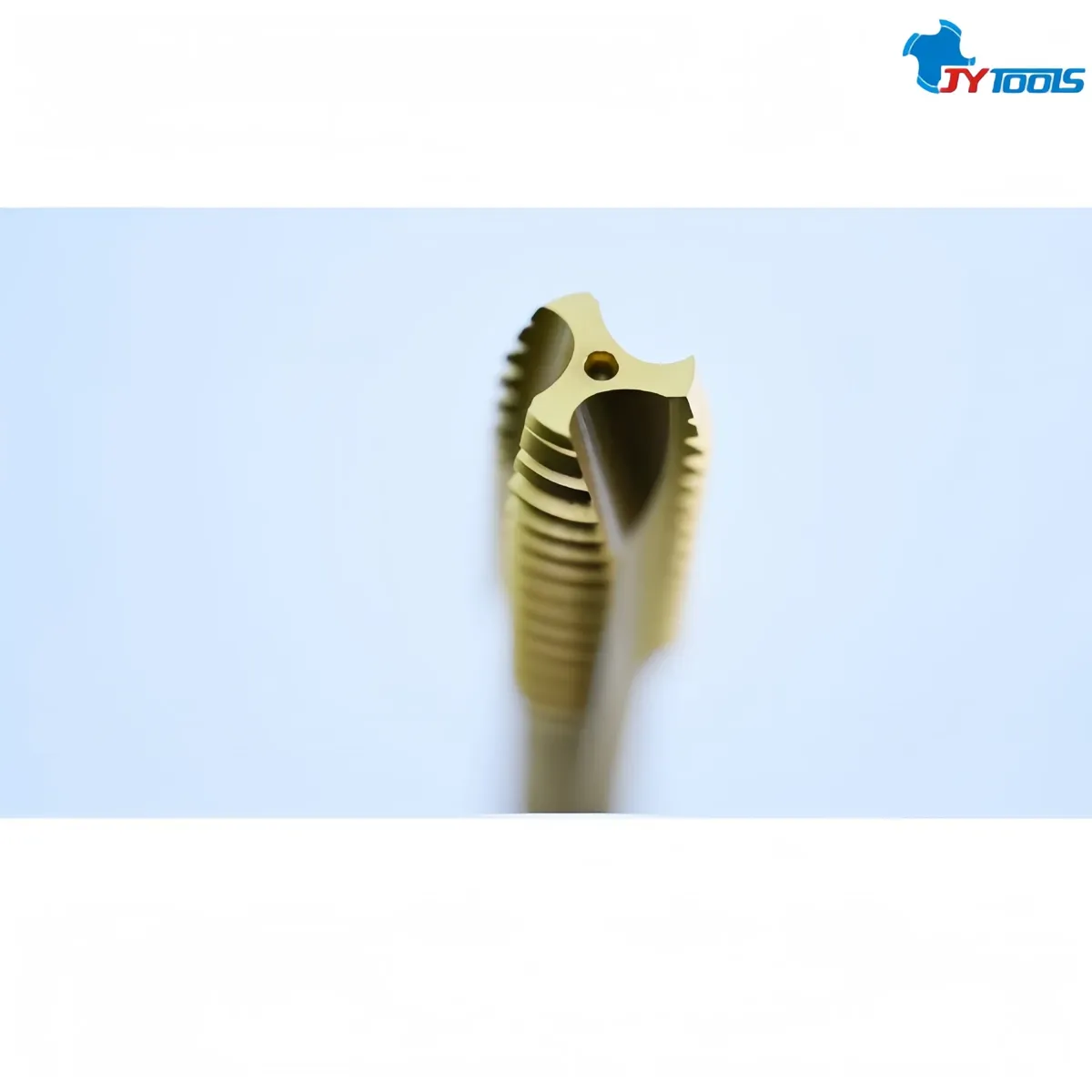

A leading tap (also called a tip tap or pilot tap) is a specially designed tap used in thread cutting. It is typically used in the initial stage of tapping to aid in grinding and guide the entire thread cutting process. Its design and function offer many unique advantages, making it particularly suitable for high-precision, high-efficiency machining requirements.
Considering smooth chip removal, it reduces the possibility of chip accumulation and clogging. Its helical flute design effectively removes chips during cutting, maintaining a smooth machining process.
The design and structure of a tip tap effectively reduce the risk of premature tool wear and breakage, especially during continuous cutting, significantly improving machining stability and tool life.
The leader section design ensures uniform cutting force distribution throughout the thread cutting process, reducing potential vibration and tool deformation.
The tip tap design is used for initial cutting, ensuring precise thread initiation and reducing errors, making it particularly suitable for demanding thread machining tasks.
Tip taps are especially suitable for applications requiring high precision, maintaining high efficiency while ensuring high thread accuracy.
In blind hole machining, it prevents chip accumulation at the bottom of the hole, improving machining efficiency and quality.
The helical flute structure performs excellently in chip removal and cutting processes in deep threaded holes.
Complete data for SP106. Non-standard sizes are made to your drawing.
| Part number | HP106024M |
|---|---|
| Material | HSS-E-PM |
| Product Name | Metric Cutting Taps |
| OEM / ODM | Made to your samples or drawings |
| Specifications | M22 × 1.5P |
| Lead time | 2 Weeks |
| Packaging (mm) | 30 × 30 × 150L |
| Thread Diameter D1 | M22 × 1.50P |
| Cut-out Length L3 | 45.0mm |
| Shank diameter D | Ø19.0mm |
| Overall Length L | 120.0mm |
| Thread Tolerance Grade ISO | OH7 |
| Coating | TiCN-CPM |
| MOQ | 2 pcs |
| Origin | Shenzhen, China |
Catalogs and datasheets for this tool family.
Send the thread standard, size and tolerance class. We supply standard taps and thread mills, plus special threads made to your samples or drawings.
