Machine Taps

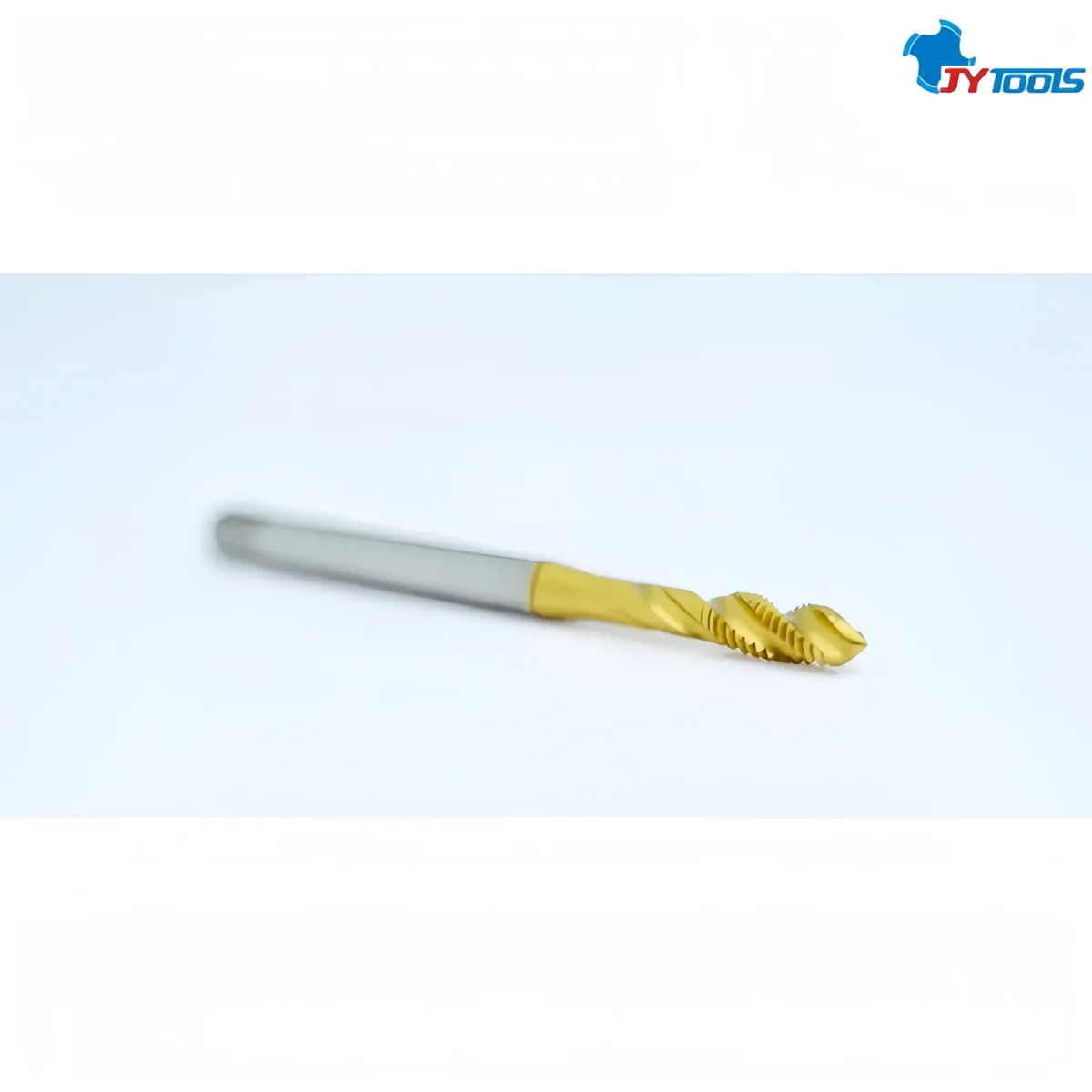

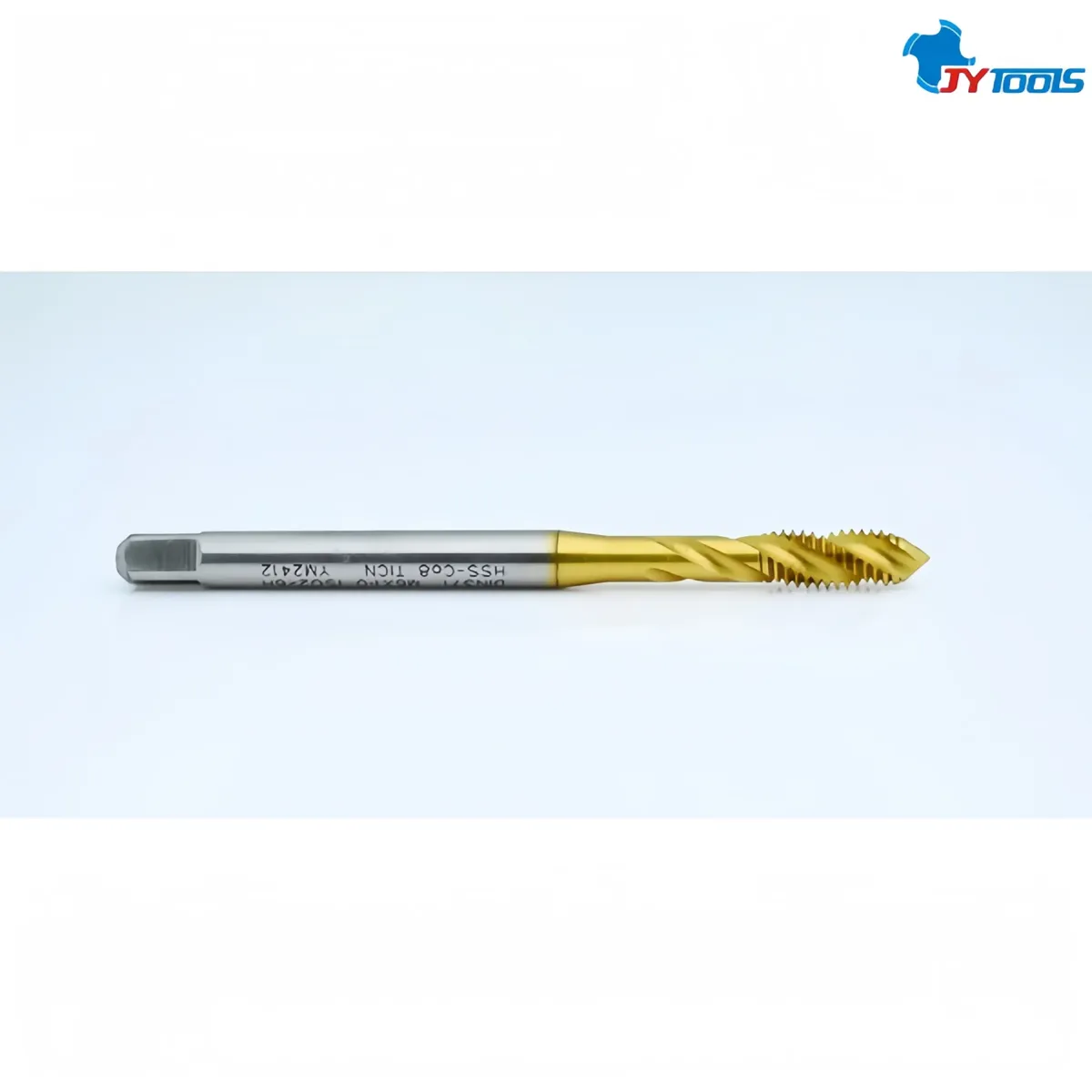

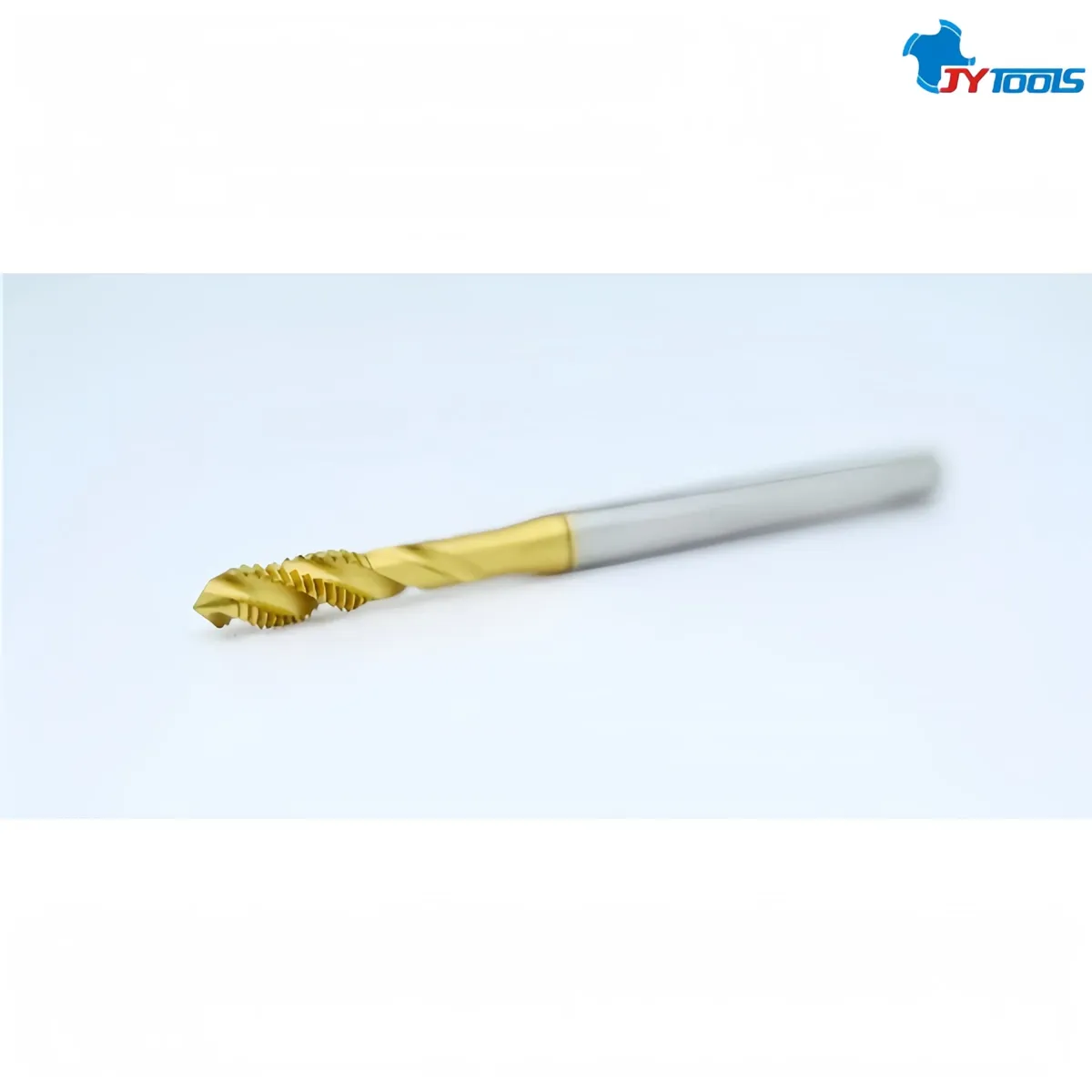

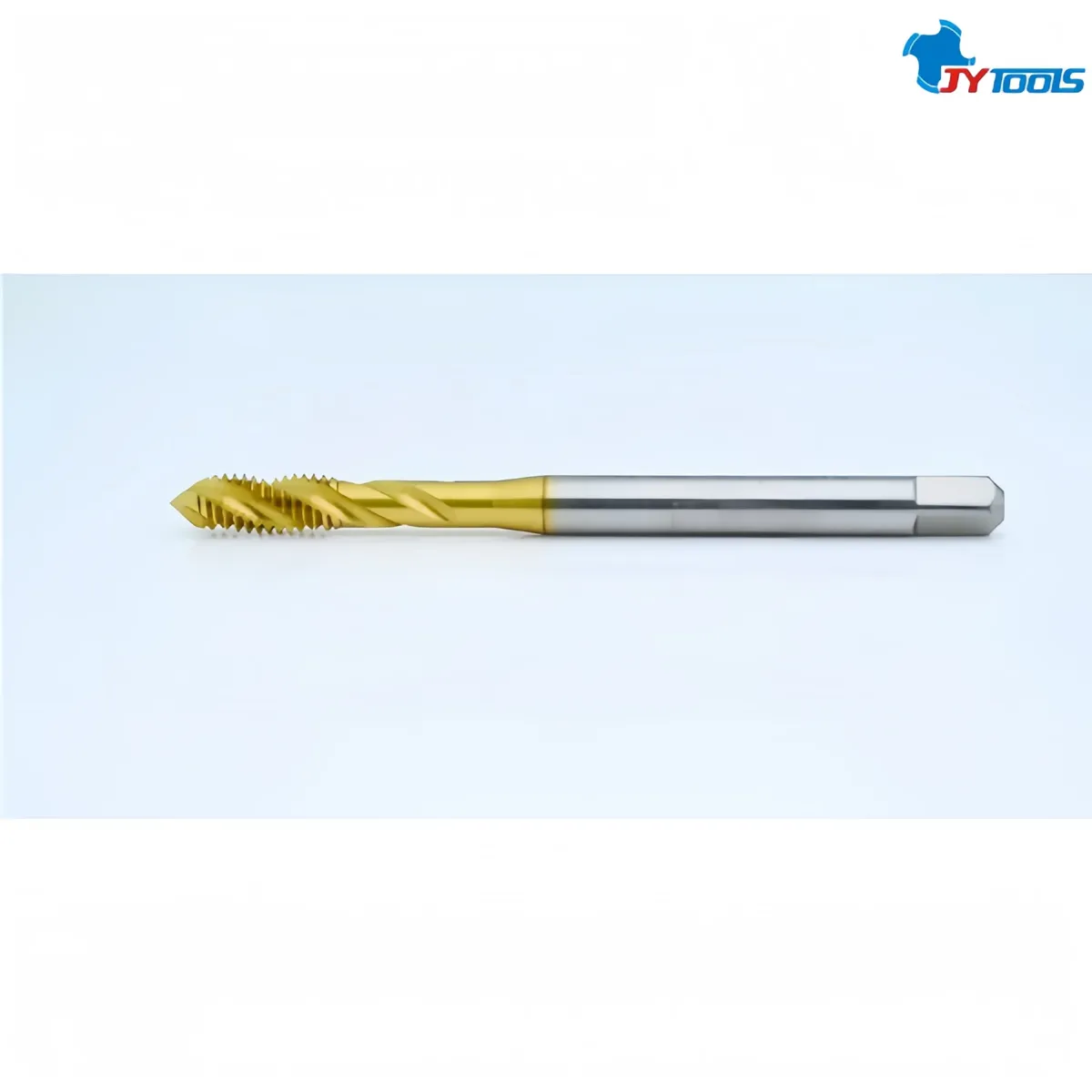

The FT114 is a professional-grade tap specifically designed for tapping DIN 371 standard metric through holes. Its high efficiency in chip removal, high precision, and high adaptability make it an ideal choice for blind hole thread machining, particularly suitable for deep holes, high-toughness materials, and complex working conditions. This high-performance tool, designed specifically for thread machining, excels in efficient machining and complex materials due to its helical flute structure and cutting edge design. The helical flute design ejects chips upwards along the flutes, preventing chip accumulation in the machining area, making it especially suitable for deep hole and blind hole thread machining. It significantly improves machining efficiency, reduces tool wear and machining costs, and is an important tool in modern thread machining.
| Part number | FT114M6H |
|---|---|
| Material | HSS-E-PM |
| Product Name | Metric Cutting Taps/Blind Hole Taps |
| OEM / ODM | Made to your samples or drawings |
| Specifications | M6 × 1.0P |
| Lead time | 2 Weeks |
| Packaging (mm) | 10 × 10 × 100L |
| Thread Diameter D1 | M6.0 × 1.0P |
| Cut-out Length L3 | 18.0mm |
| Shank diameter D | Ø4.0mm |
| Overall Length L | 90.0mm |
| Thread Tolerance Grade ISO | 7G |
| Coating | TiN |
| MOQ | 2 pcs |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
High-precision thread grinding ensures thread profile accuracy within ±0.01mm, and thread surface finish below Ra0.4μm, guaranteeing the accuracy of DIN standard thread connections.
A 15° guide cutting edge design allows chips to exit forward along the tap, improving chip removal efficiency by 40% compared to straight flute taps. Perfectly suited for through-hole tapping, preventing chips from scratching the machined threads.
TiAlN, TiCN, TAD, TiN, DLC, etc., with coating hardness up to HV3400 and a friction coefficient as low as 0.15, extending tool life by 2-3 times compared to uncoated taps.
High-speed steel (HSS) and high-performance high-speed steel (HSSE) base materials, combining high toughness and red hardness, suitable for tapping general-purpose materials such as steel and aluminum alloys.
Spiral flute taps are suitable for various materials including steel, stainless steel, aluminum alloys, copper, and titanium alloys. When machining materials with high viscosity or toughness (such as stainless steel or titanium alloys), they effectively reduce cutting resistance and tool wear.
Uses DIN376 standard square shank, compatible with various tapping chucks, allowing for quick clamping on CNC machining centers, tapping machines, and drilling machines, improving tool change efficiency by 20%.
In blind hole machining, it prevents chip accumulation at the bottom of the hole, improving machining efficiency and quality.
The helical flute structure performs excellently in chip removal and cutting processes during deep threaded holes.
Send the thread standard, size and tolerance class. We supply standard taps and thread mills, plus special threads made to your samples or drawings.
