Cermet Series · Finishing

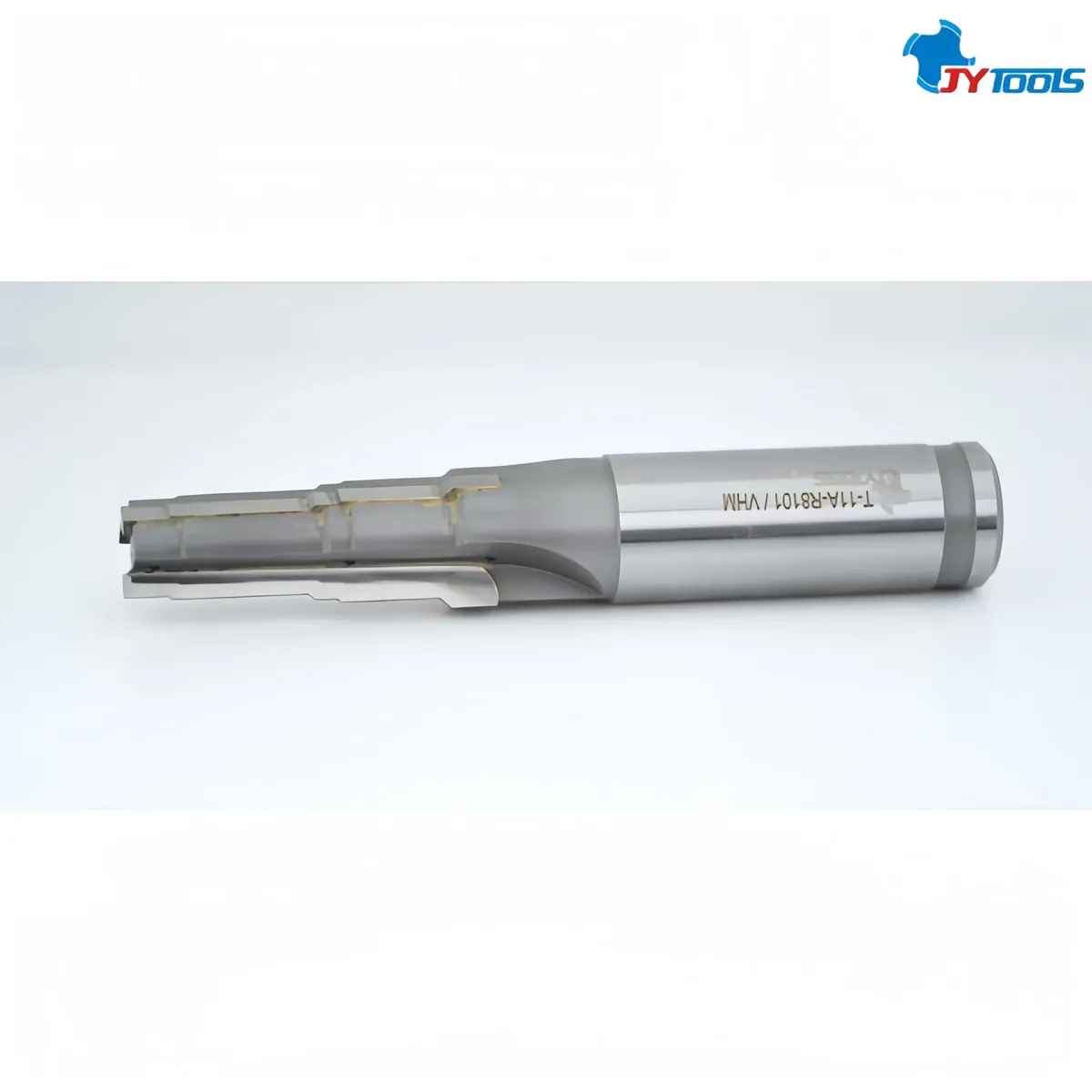

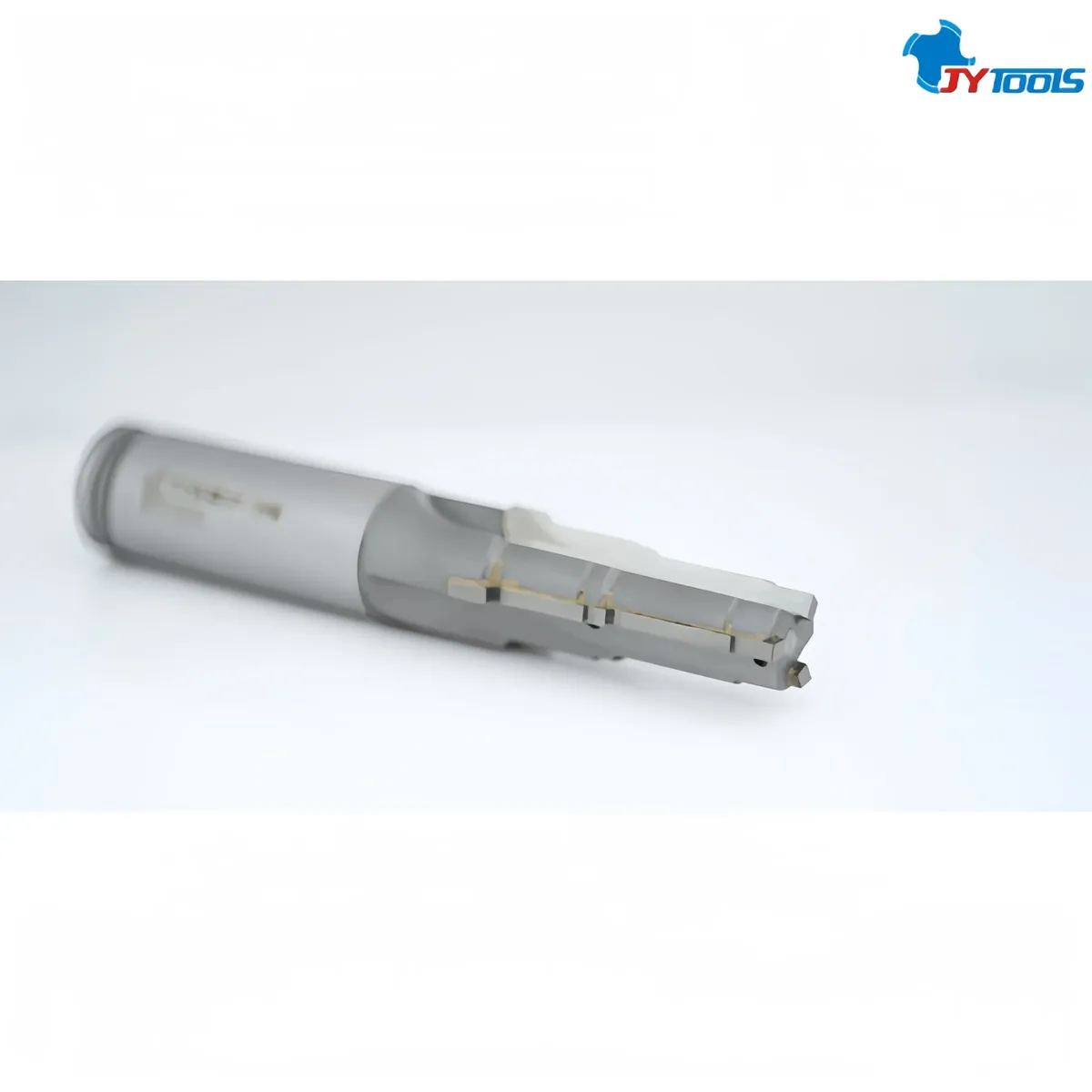

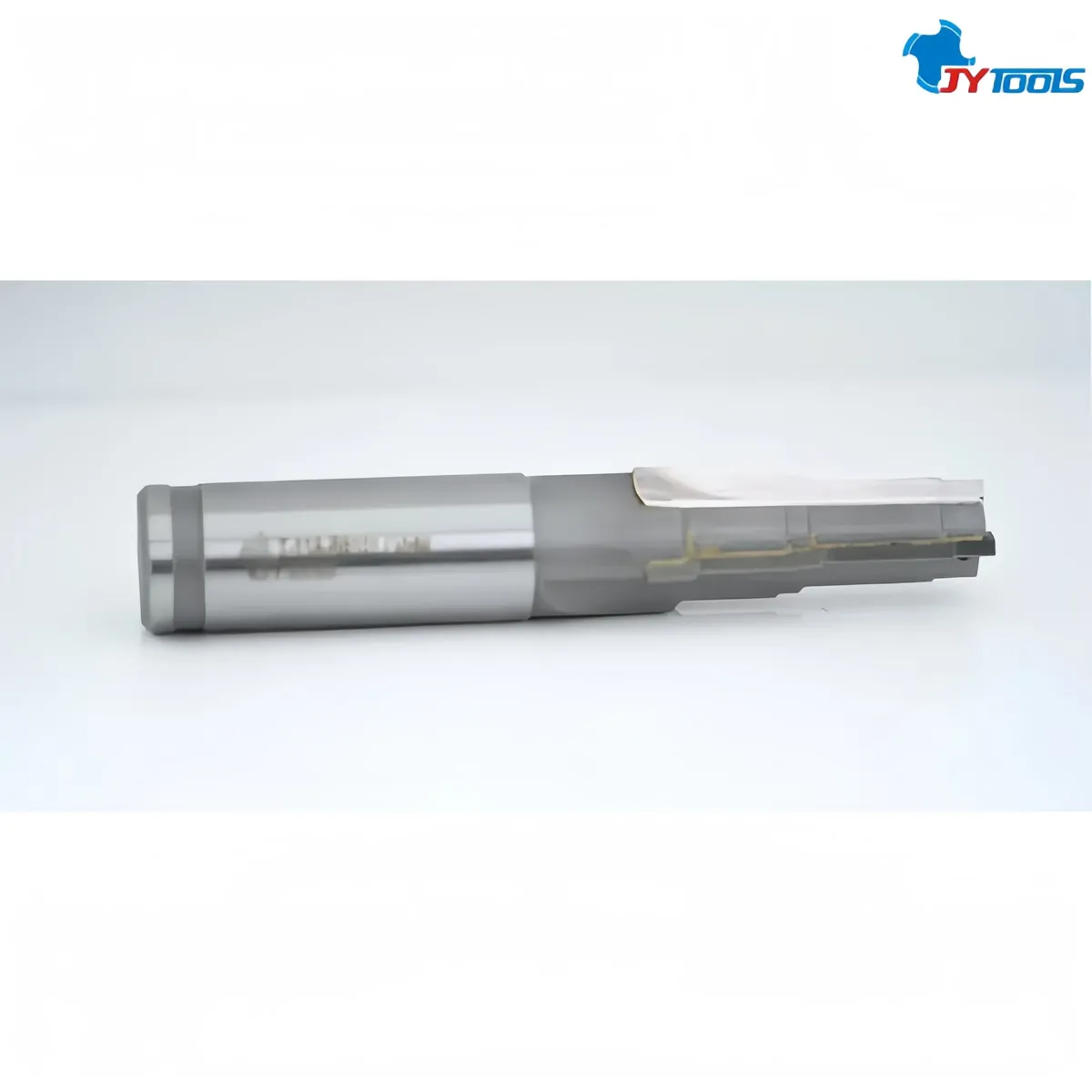

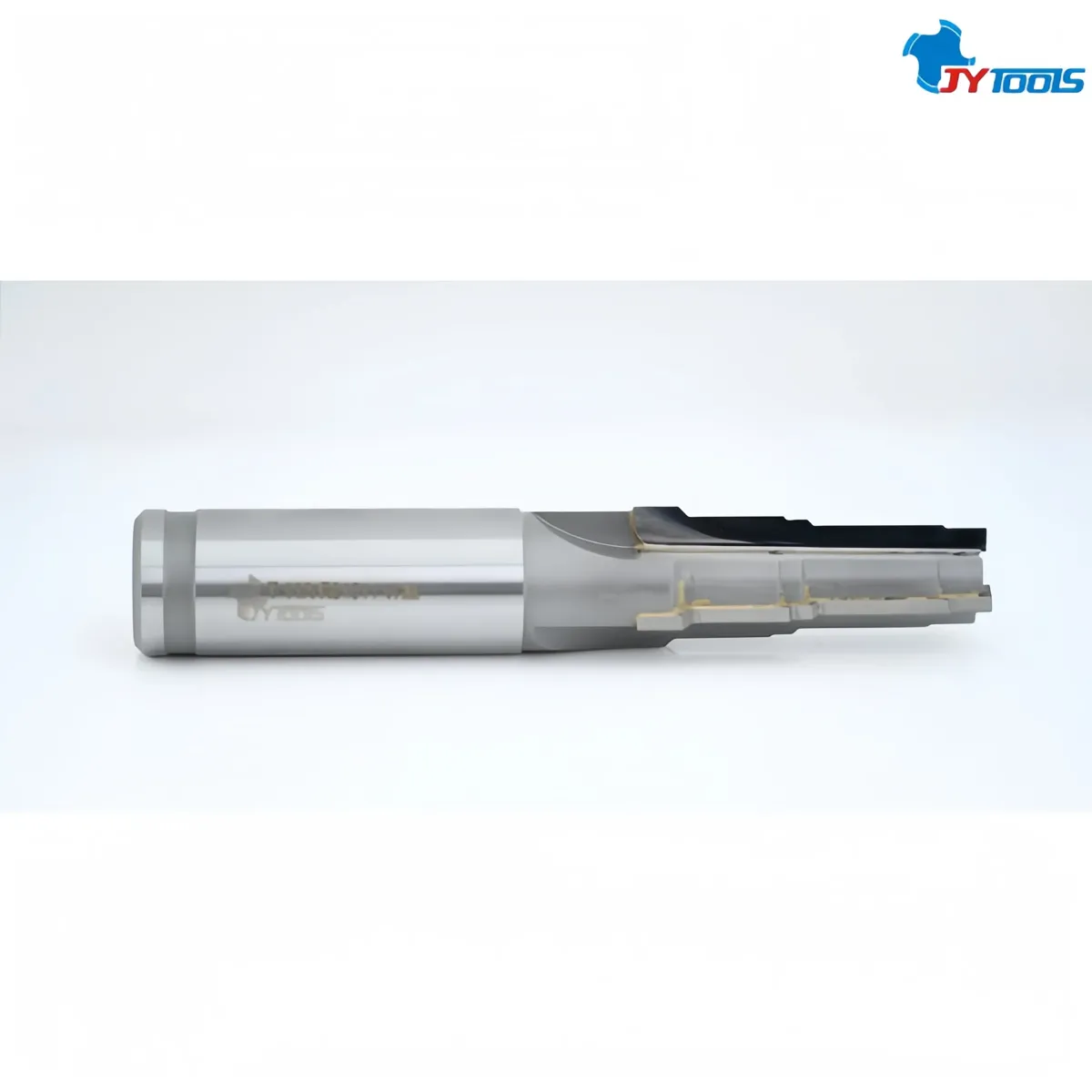

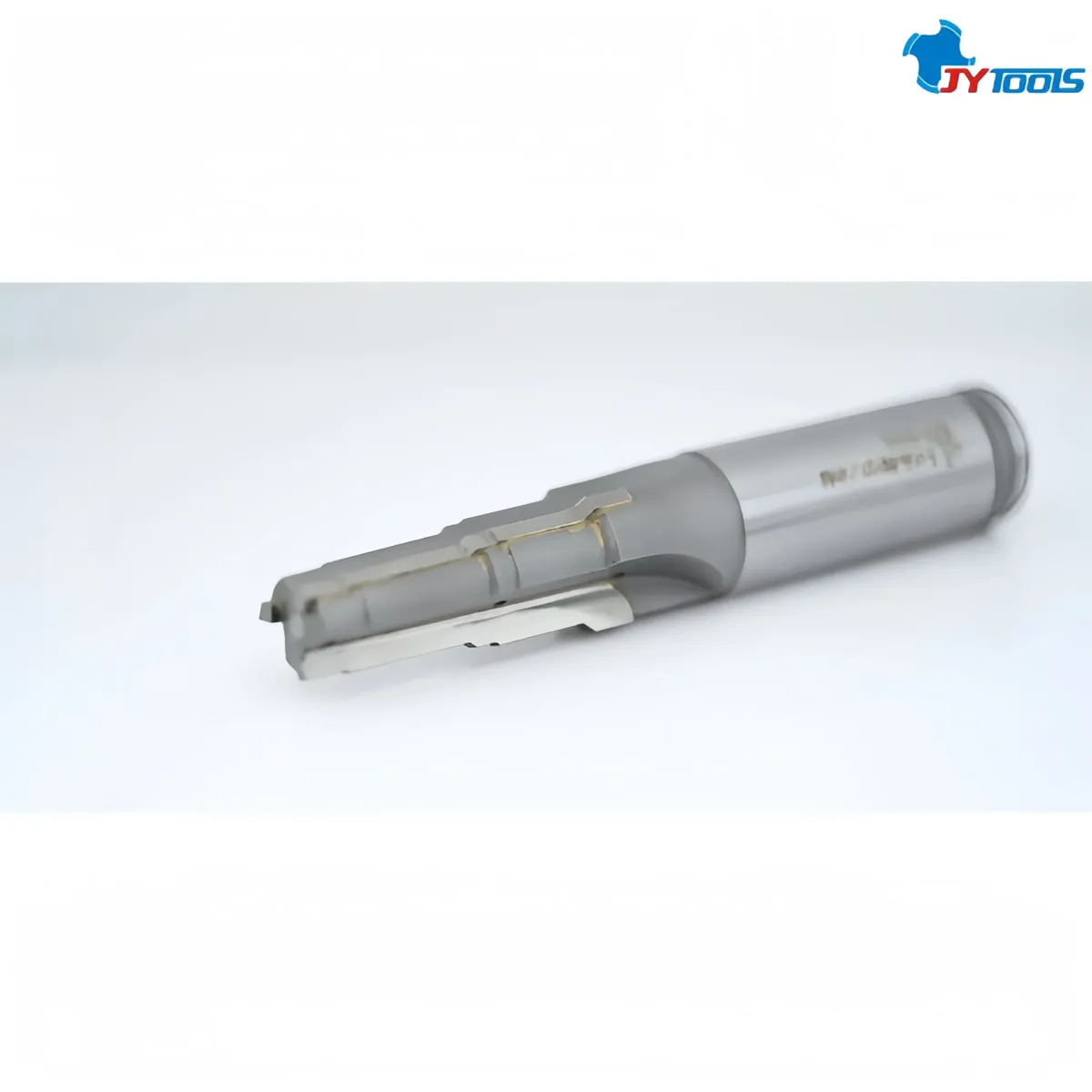

The T-11A Cavity Tool is a dedicated reamer for cartridge valve manifolds. It is a high-precision cutting cavity tool designed for machining holes in hydraulic cartridge valve manifolds, mainly used to improve the dimensional accuracy, geometric accuracy, and surface finish of multi-diameter bores. Designed for precision machining of cartridge valve cavities in Sun Hydraulics hydraulic manifolds, including reaming of guide bores, oil passage bores, and valve seat bores. It ensures high bore accuracy and meets the strict sealing and functional requirements of hydraulic systems. Versatile applications: One tool body can efficiently perform precision reaming of multiple hole diameters. Because the cutting section uses a brazed cermet insert plate, wear is minimized and tool life is extended. Cavity Tool Type: HSS A Type / Morse Taper Shank B Type / Solid Carbide C Type / Indexable Insert D Type / Brazed Insert Plate E Type / Brazed Cermet R Type / Brazed PCD F Type.
| Item No. | T-11A D8101 |
|---|---|
| Type | Brazed Carbide Type E – Finishing |
| Product Name | Cavity Reamer / Cavity Tool |
| OEM / ODM | Made to your samples or drawings |
| Specification / Model | T-11A FT |
| Packaging (mm) | 40 × 150L |
| Applicable Brand | SUN Hydraulics |
| Guide Margin Diameter D | Ø17.475mm /0.688 |
| Shank Diameter d | Ø25.0mm |
| Overall Length L | 140.0mm |
| Thread Tap | M20 × 1.5-6H Tap |
| Material | Carbide Insert |
| Coolant Through | Yes |
| MOQ | 2 pcs |
| Lead time | 1–4 Weeks |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
Thanks to excellent wear and heat resistance, brazed cermet reamers last longer than conventional tools, reducing replacement frequency and cost.
Cermet materials provide extremely high hardness and wear resistance, maintaining excellent cutting performance under high-load and high-temperature conditions.
Cermet maintains its physical and chemical properties at high temperatures, making it suitable for high-temperature alloys and other difficult-to-machine materials.
The T-11A D81021 Brazed Cermet Cavity Tool features a precision design and high-performance materials, maintaining stable cutting performance over long periods to improve machining accuracy and tool life.
The T-11A D8101 complies with Sun Hydraulics cartridge valve technical standards, including control valves, diverter valves, relief valves, directional valves, and similar applications. It is suitable for valve bodies made from heat-treated alloy steel above HRC 35.
Compared with solid carbide cavity tools, it offers higher wear resistance and supports higher spindle speeds and feeds. Hole surface roughness typically reaches Ra 0.4 or better, meeting the high sealing requirements of hydraulic components.
Typical industries and parts machined with this tool.
Used for machining various valve bodies and valve seats in fluid control equipment, ensuring smooth fluid flow and reliable sealing performance.
Used for machining cartridge valve cavities in hydraulic manifolds, ensuring dimensional accuracy and surface finish.
Used for machining hydraulic control system components in engines and transmissions.
Used for machining high-precision hydraulic and pneumatic control system components.
Tell us the cartridge cavity standard and your valve-block material. We supply roughing and finishing cavity tools in standard sizes or made to your samples or drawings.
