55° Tapered Locking Thread

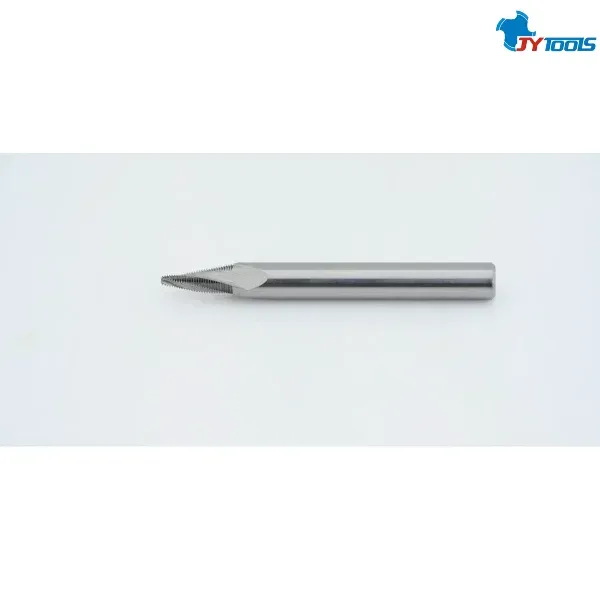

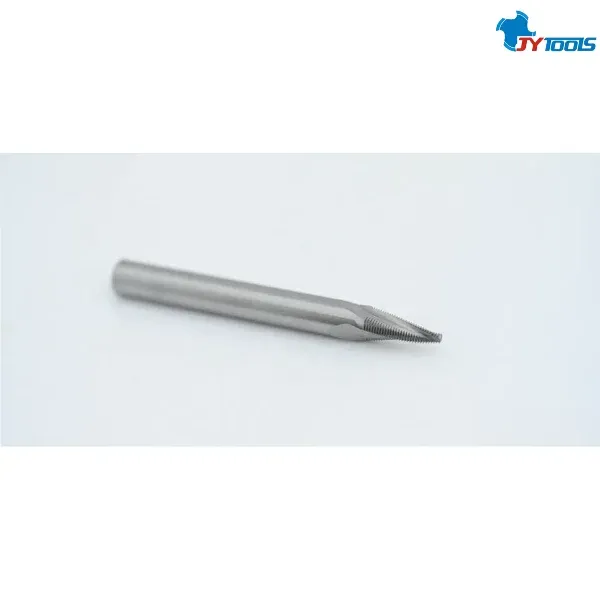

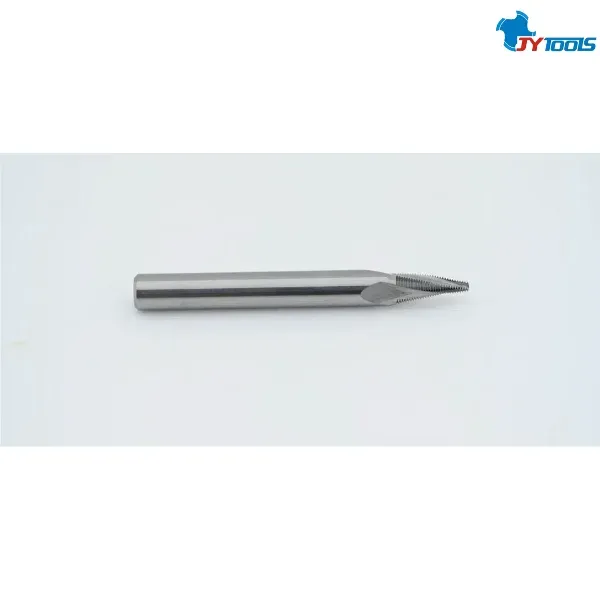

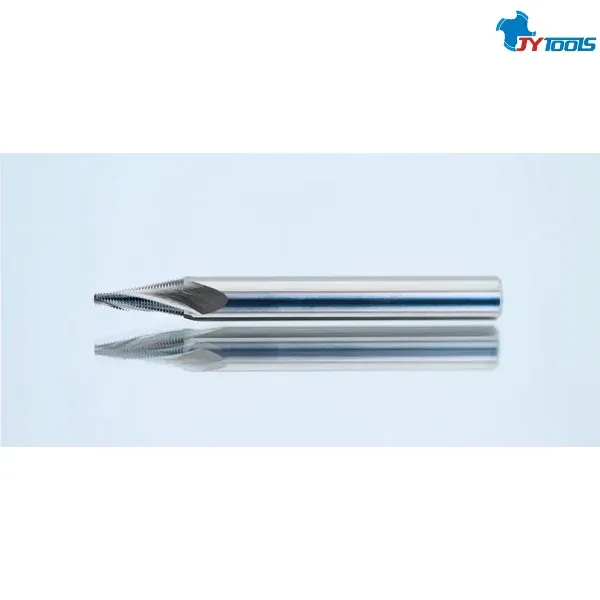

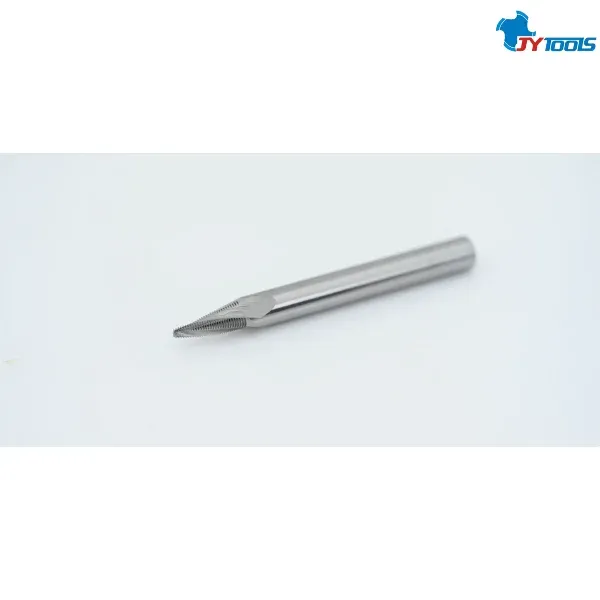

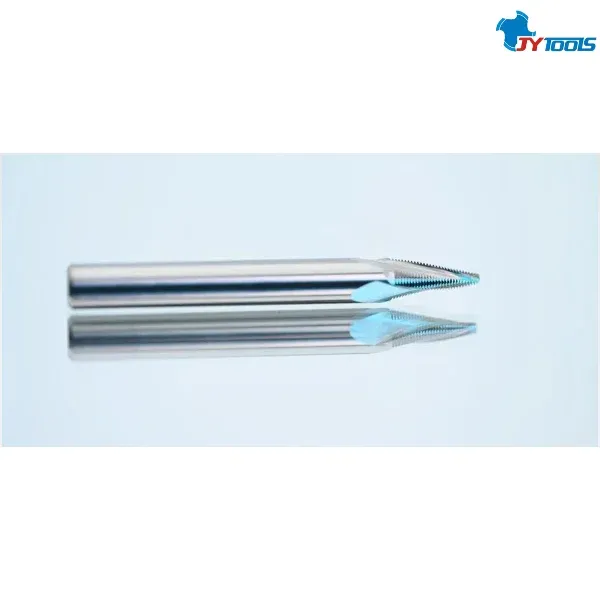

The MT770 series is a professional-grade thread end mill specifically developed for precision machining of 55° taper threads in orthopedic implants. Designed for the characteristics of biomedical materials such as titanium alloys (Ti-6Al-4V, etc.) and cobalt-chromium-molybdenum alloys (CoCrMo), it employs an ultra-fine grain cemented carbide substrate and a medical-grade coating solution (TiAlN/DLC). While ensuring excellent biocompatibility, it achieves medical-grade standards of thread machining accuracy ±0.005mm and surface roughness Ra≤0.2μm, providing an efficient, stable, and safe precision thread machining solution for orthopedic implants such as bone plates, interbody fusion devices, and joint stems.
| Part number | MT770 |
|---|---|
| Material | VHM |
| Product Name | 55° Tapered Thread End Mill |
| OEM / ODM | Made to your samples or drawings |
| Specifications | Ø1.0 × 0.35P |
| Lead time | 2 weeks |
| Parameter Items | Standard Specifications |
| Applicable Thread Standard | 55° Medical Taper Thread |
| Tool Type | Solid Carbide Thread End Mill |
| Base Material | Ultra-fine Grain Carbide (Grain Size 0.3-0.5μm) |
| Coating Options | TiAlN, DLC |
| Thread Direction | Right-hand/Left-hand Threads Customizable |
| Shanty Interface | Cylindrical Straight Shank, Hydraulic Shank, etc. |
| MOQ | 2 pcs |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
Utilizes HRC68 grade ultra-fine grain cemented carbide, improving chipping resistance by 60% and enabling stable machining of difficult-to-machine biomaterials such as titanium alloys and cobalt-chromium-molybdenum alloys.
Adapted to the standard taper thread design for orthopedic implants, taper thread forming can be completed in a single pass, increasing machining efficiency by 50% compared to traditional taps.
Thread pitch accuracy is controlled within ±0.005mm, and surface finish reaches Ra≤0.2μm, meeting the stringent tolerance requirements of orthopedic implants.
The cutting edge radius is precisely controlled within 0.003mm, balancing sharpness and wear resistance, reducing edge chipping, and ensuring consistent machining.
Utilizing a vacuum ion plating process, coating adhesion is improved by 40%, preventing coating peeling and contamination of the implant surface.
Hardness HV3400, coefficient of friction 0.4, suitable for machining common implant materials such as titanium alloys and stainless steel.
The direct action of cutting fluid reduces friction between the cutting edge and the workpiece, improving surface quality and reducing tap wear.
55° Tapered Thread Mills, Orthopedic Thread Mills, Medical Implant Machining Tools, Orthopedic Instrument Machining Tools
Send the thread standard, size and tolerance class. We supply standard taps and thread mills, plus special threads made to your samples or drawings.
