Metric straight thread O-ring port
In hydraulic and pneumatic system machining, the sealing performance of ISO ports depends on precision. Our ISO port tools are specifically designed for the ISO/FDIS 6149-1:2022(E) standard, integrating a pilot hole, sealing angle, and spotface into a single tool. Traditional SAE port machining often requires multiple tool changes using drills, reamers, and countersinks, wasting time and increasing the risk of platen defects leading to leaks. Choosing our professional ISO port tools will result in a 60% reduction in machining time, zero defect rate, and extended service life. Suitable for multiple applications: A single tool body can efficiently and precisely ream multiple hole sizes at different diameters. Because the cutting part is a carbide shank, tooling costs are reduced and service life is extended. Port tool types: High-speed steel FA type / Morse taper shank FB type / Carbide FC type / Interchangeable insert FD type / Welded cermet FR type

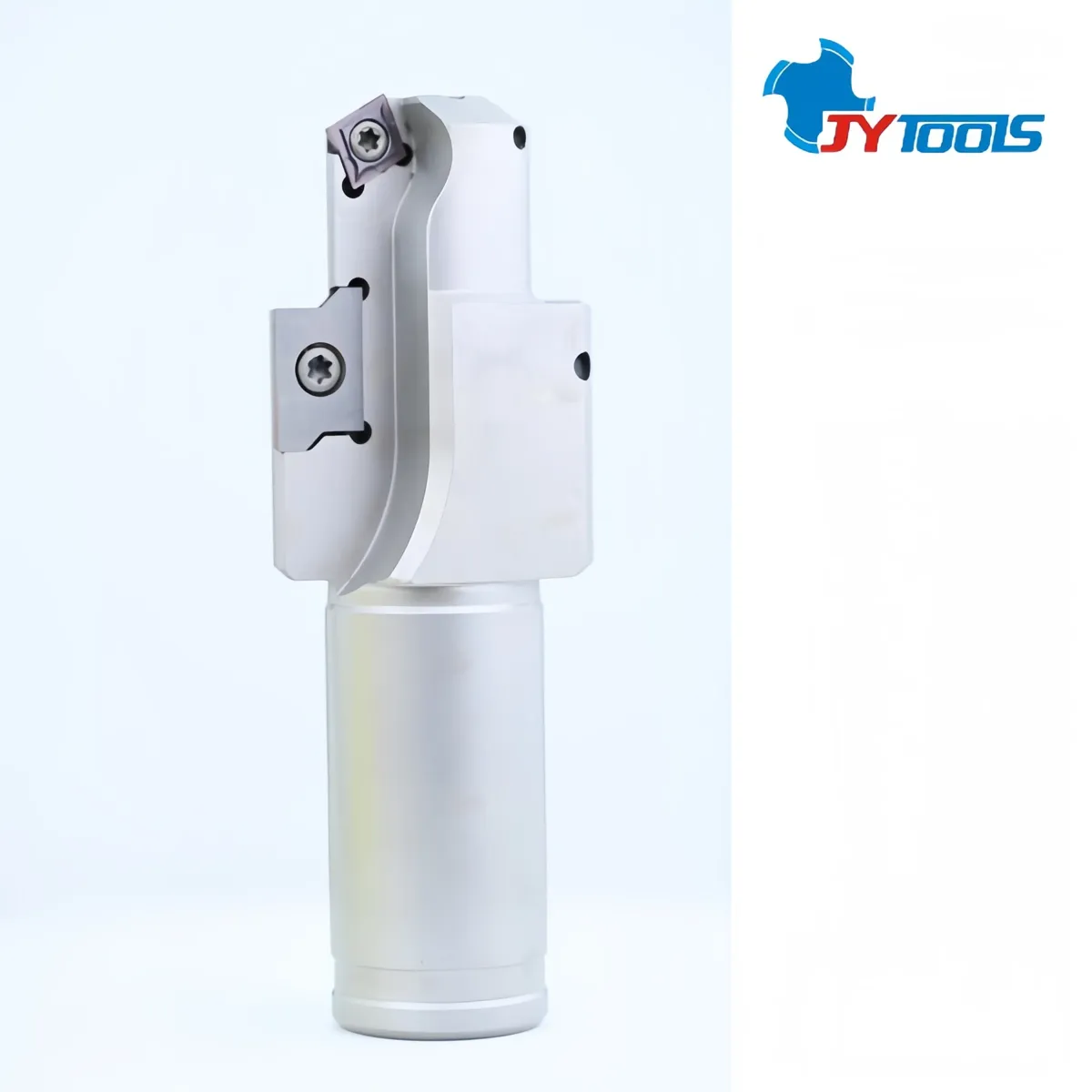

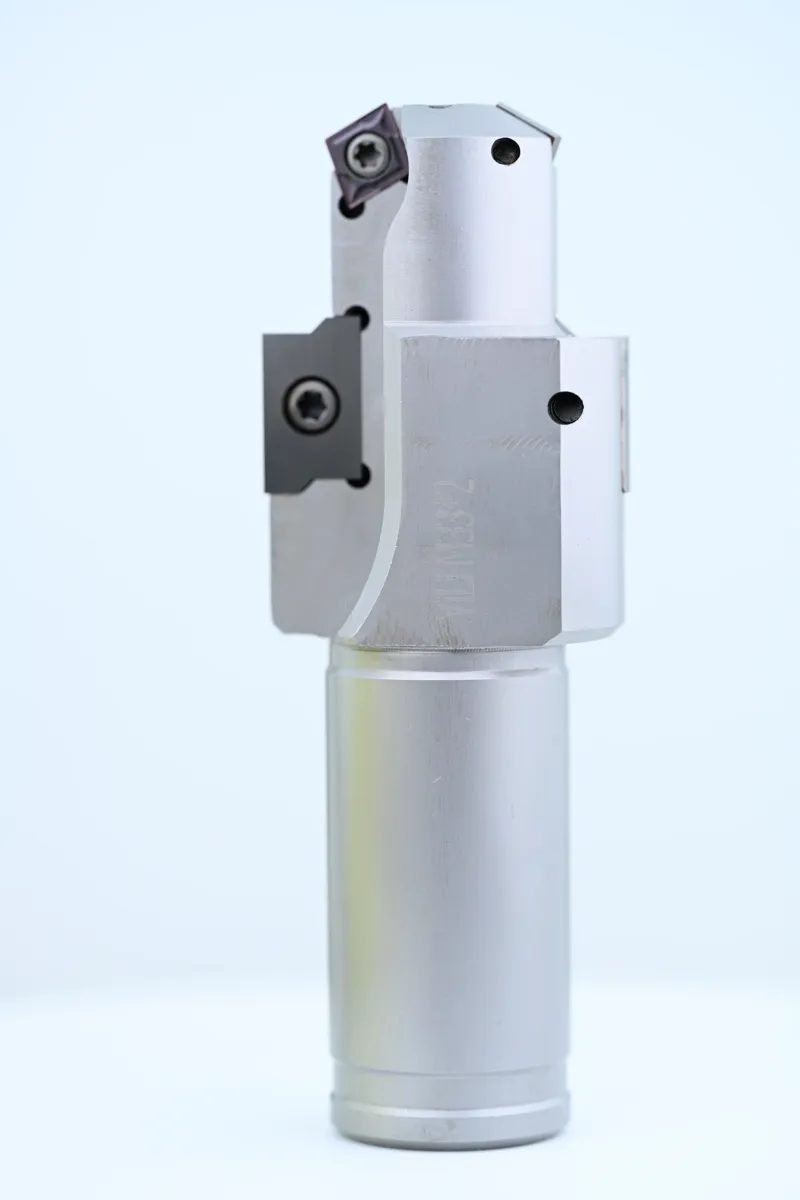

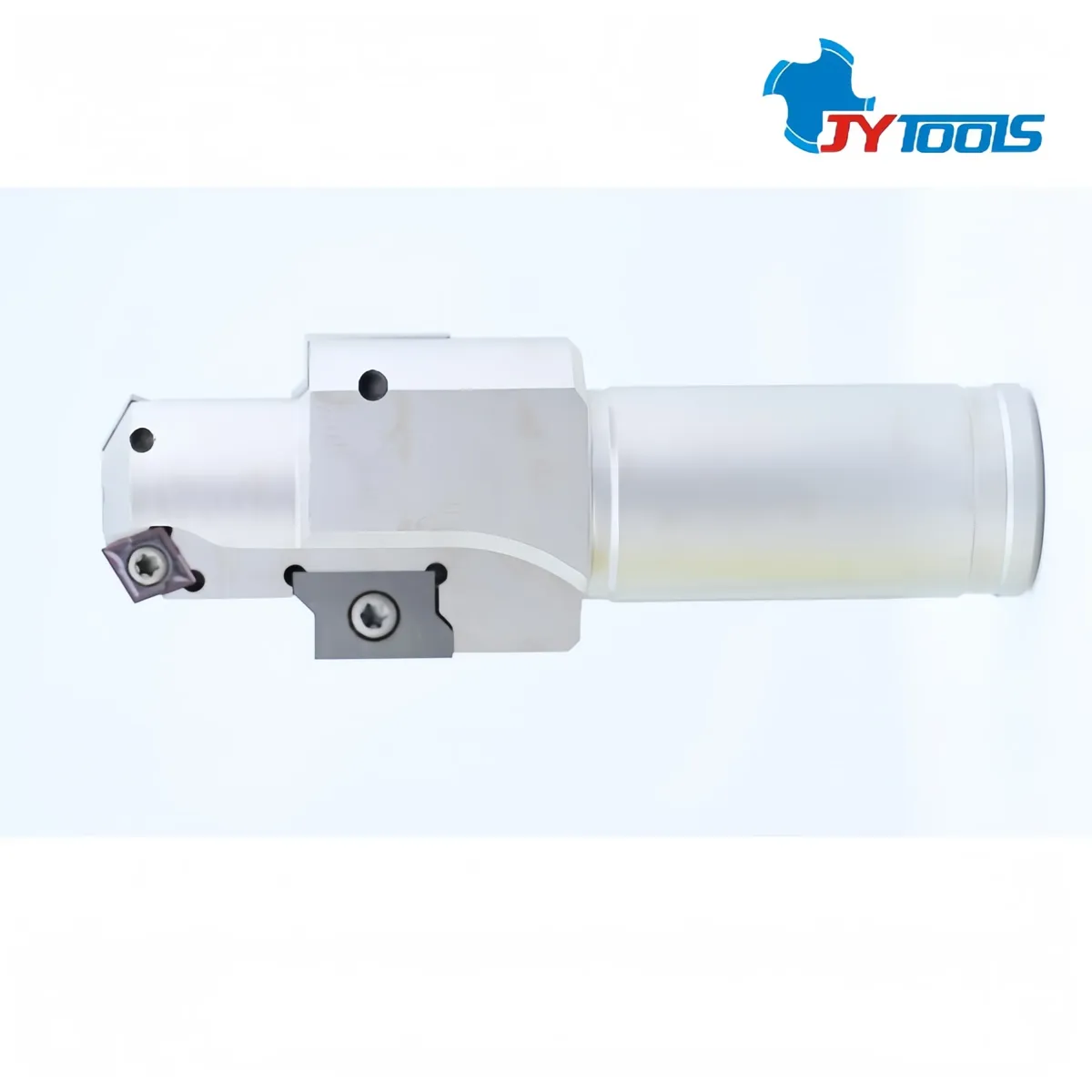

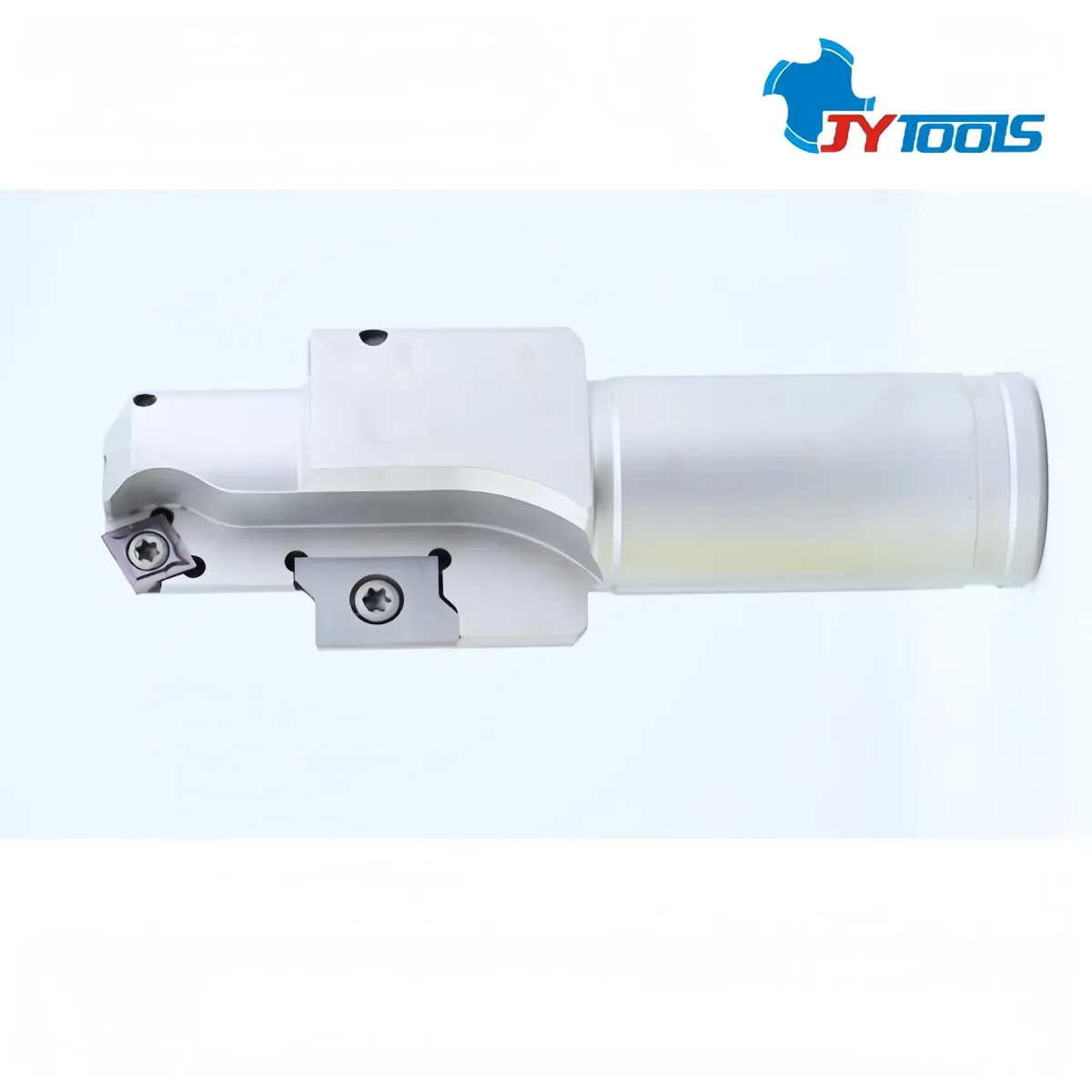

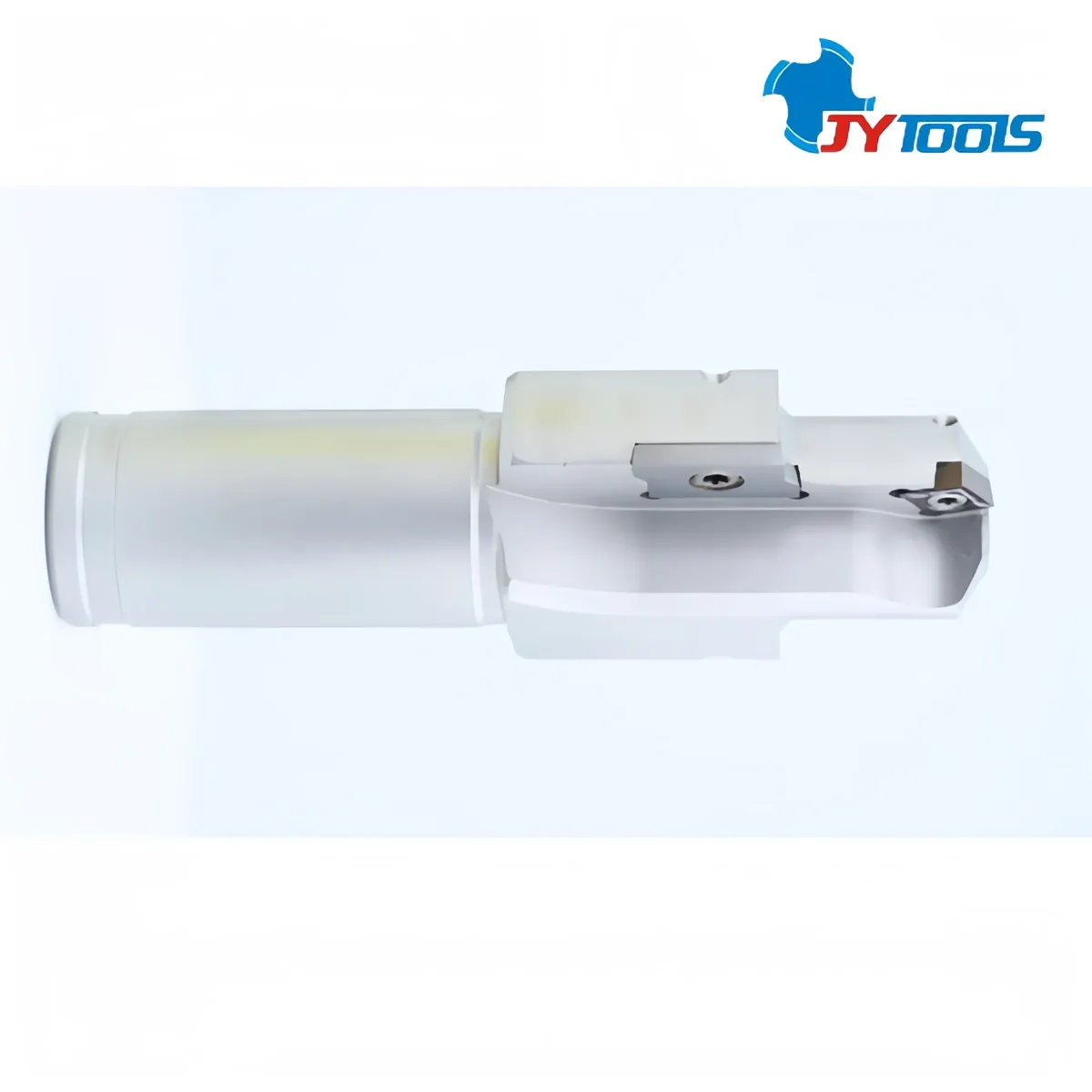

| Part number | M22 × 1.5 FD614 |
|---|---|
| Type | Indexable FD type |
| Product Name | SAE Port Profile Cutting Machine |
| OEM / ODM | Made to your samples or drawings |
| Specifications | M22 × 1.5 |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
Avoid cam deviation caused by multiple tool changes, and ensure the absolute perpendicularity of the thread and sealing surface, which is the key to preventing oil leakage at the interface.
Due to its replaceable insert, the blade is not prone to chipping during intermittent cutting, and the cutter body is more stable and less likely to vibrate. Especially suitable for casting skin, pores and uneven materials
One blade has multiple cutting edges, and when the blade wears out, it can be replaced directly. The tool body can be used for a long time, and the tool cost of a single valve body can be reduced by 30–50%
The indexable port tool has a repeatable and indexable design, which has high removal efficiency and strong impact resistance. The blade can be replaced multiple times. It is especially suitable for castings and large-volume processing, and can significantly reduce the cost of single-piece processing.
Compared with solid carbide port tools, it has higher wear resistance/fast rotation speed feed, negative blade rake angle or reinforced edge shape/high rigidity overall structure of the tool body. Blade wear → direct replacement
Typical industries and parts machined with this tool.
Working with pipe joints in corrosion-resistant materials such as bronze or duplex stainless steel, and understanding the most extreme operating environments.
Machining hydraulic valve blocks, pump bodies, and actuator connection ports to ensure leak-free operation under high pressure.
Manufacturing precision pneumatic control valves and spindle interfaces to accommodate pressure switching.
Ensuring smooth, seamless piping connections that meet hygienic cleaning standards.
Machining lightweight manifolds for consumable and cooling systems.
Tell us the port standard and thread size. We supply port contour cutters in standard sizes or made to your samples or drawings.
