4-flute Carbide End Mill

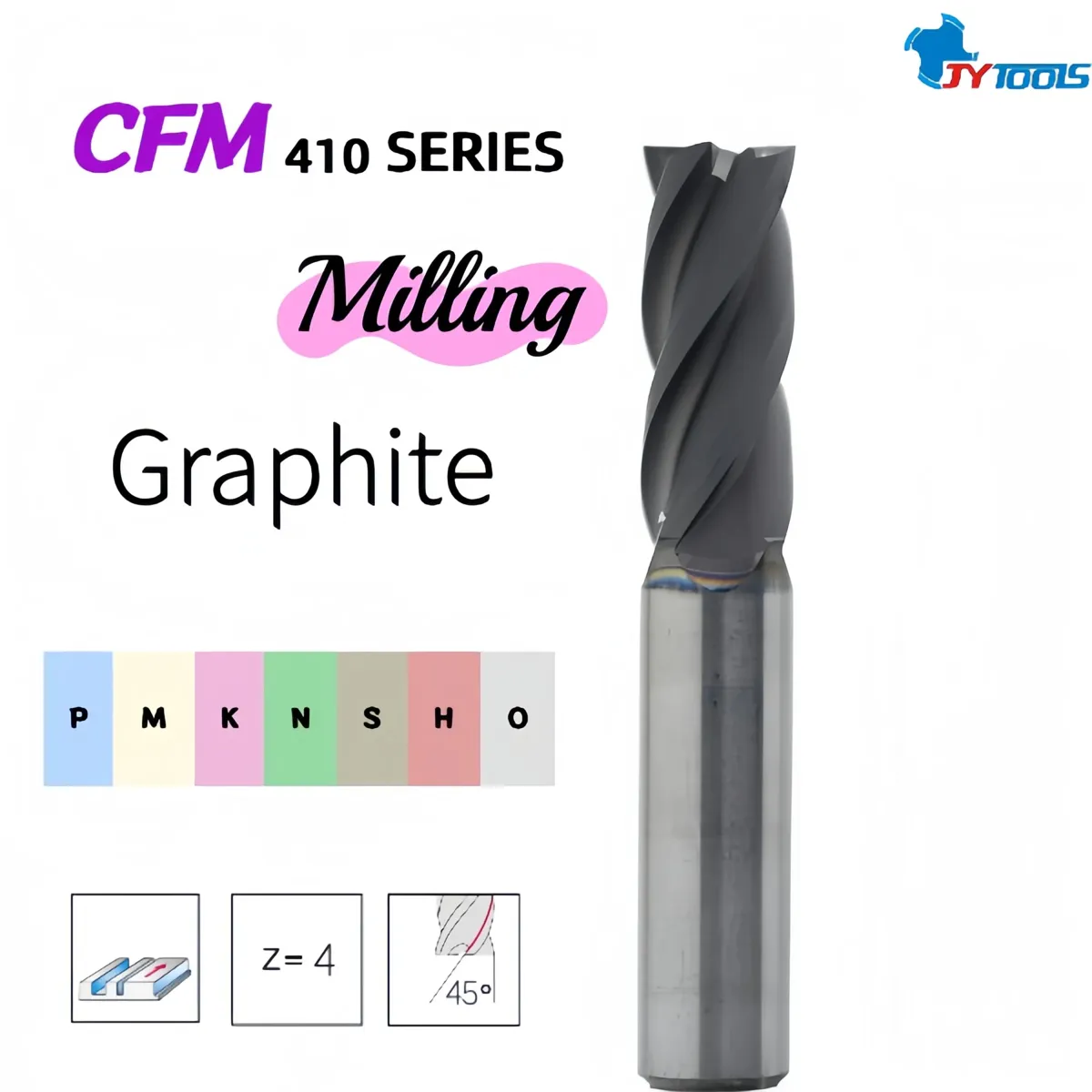

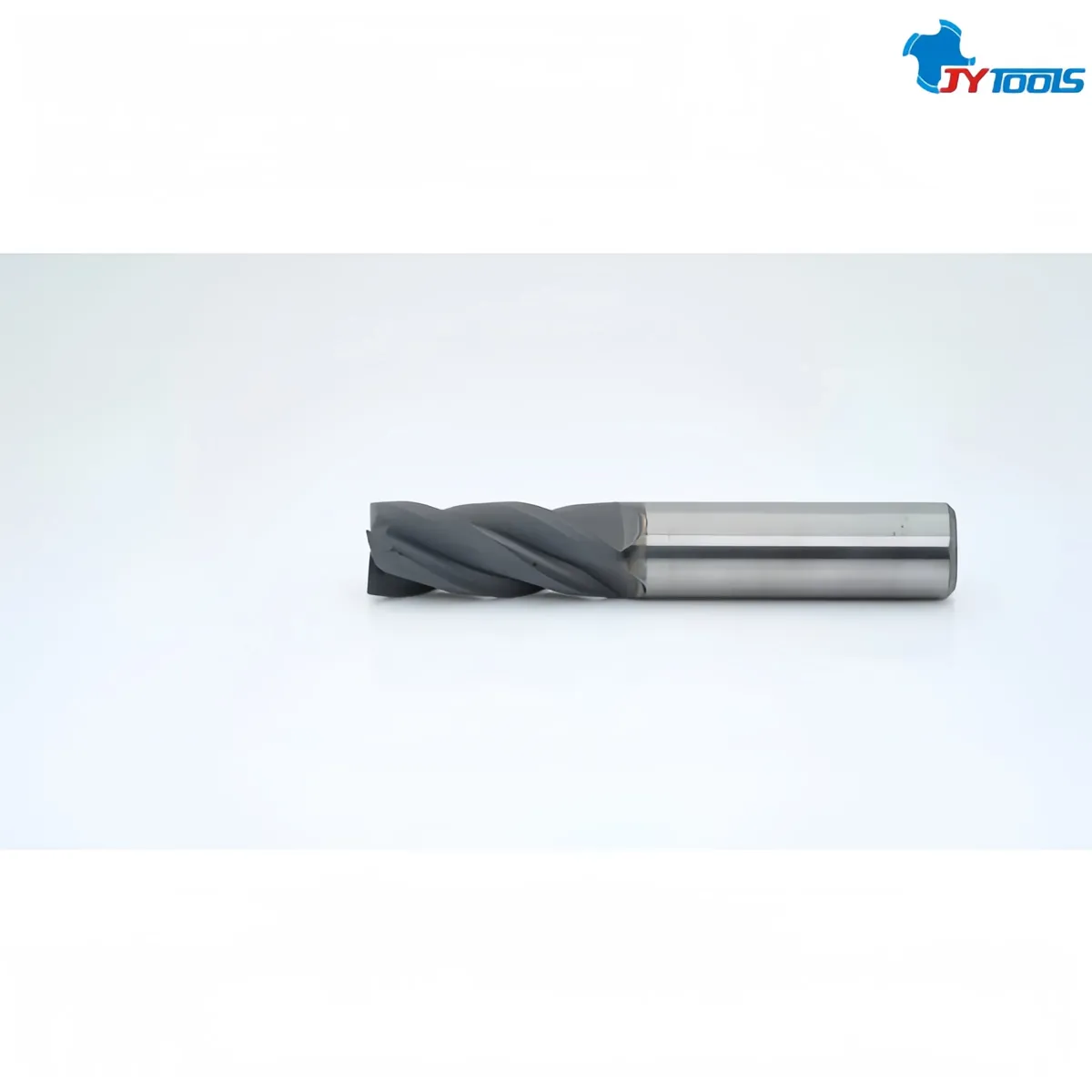

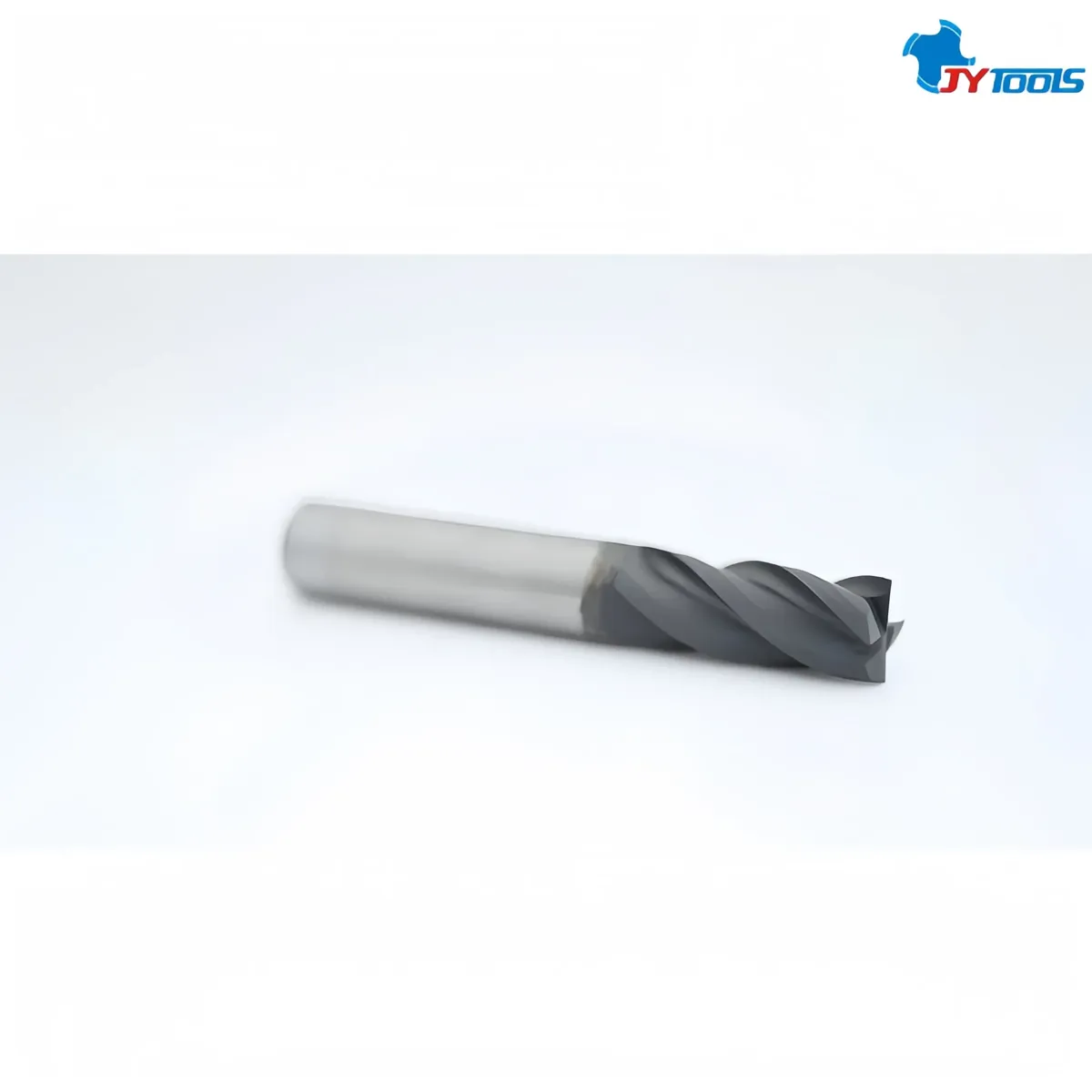

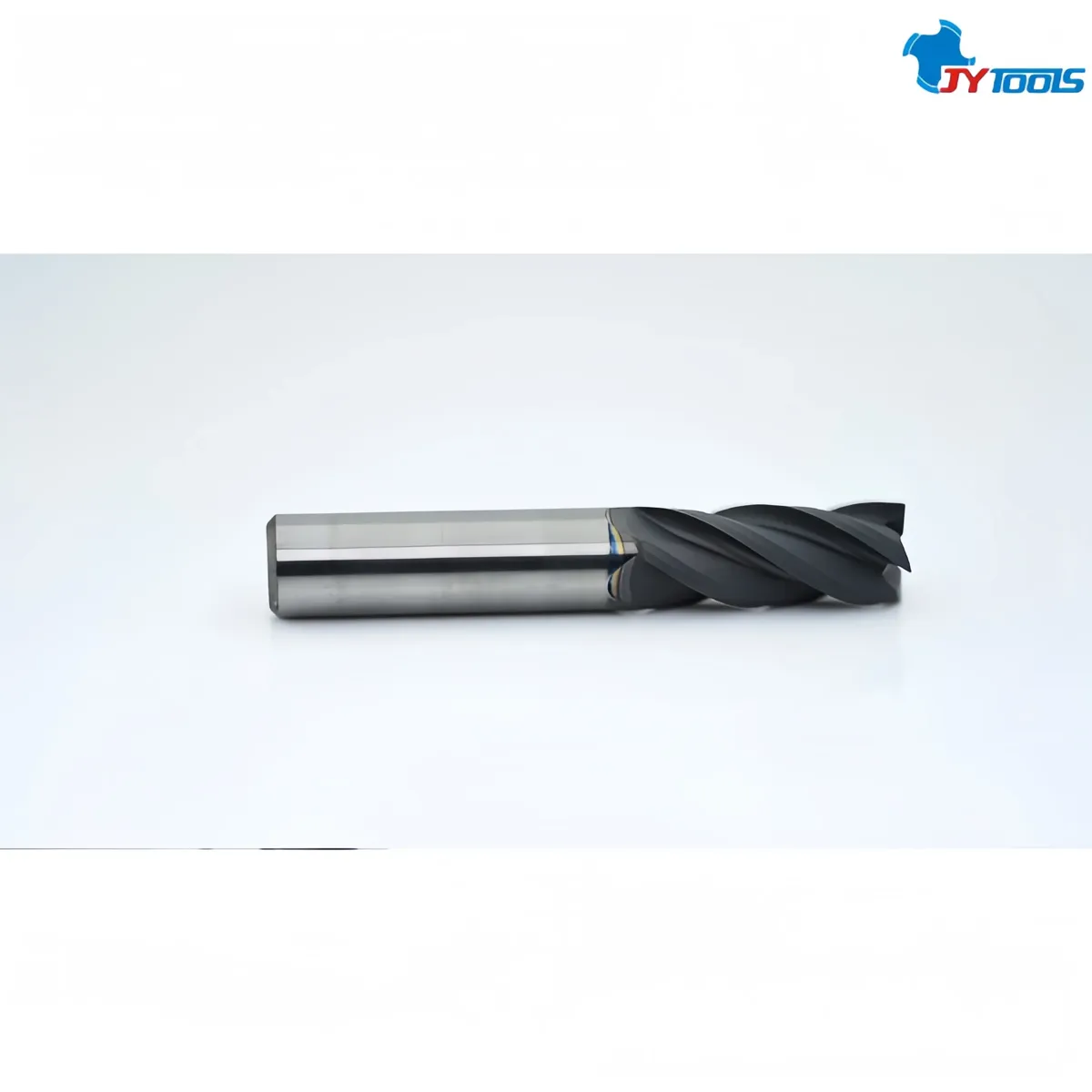

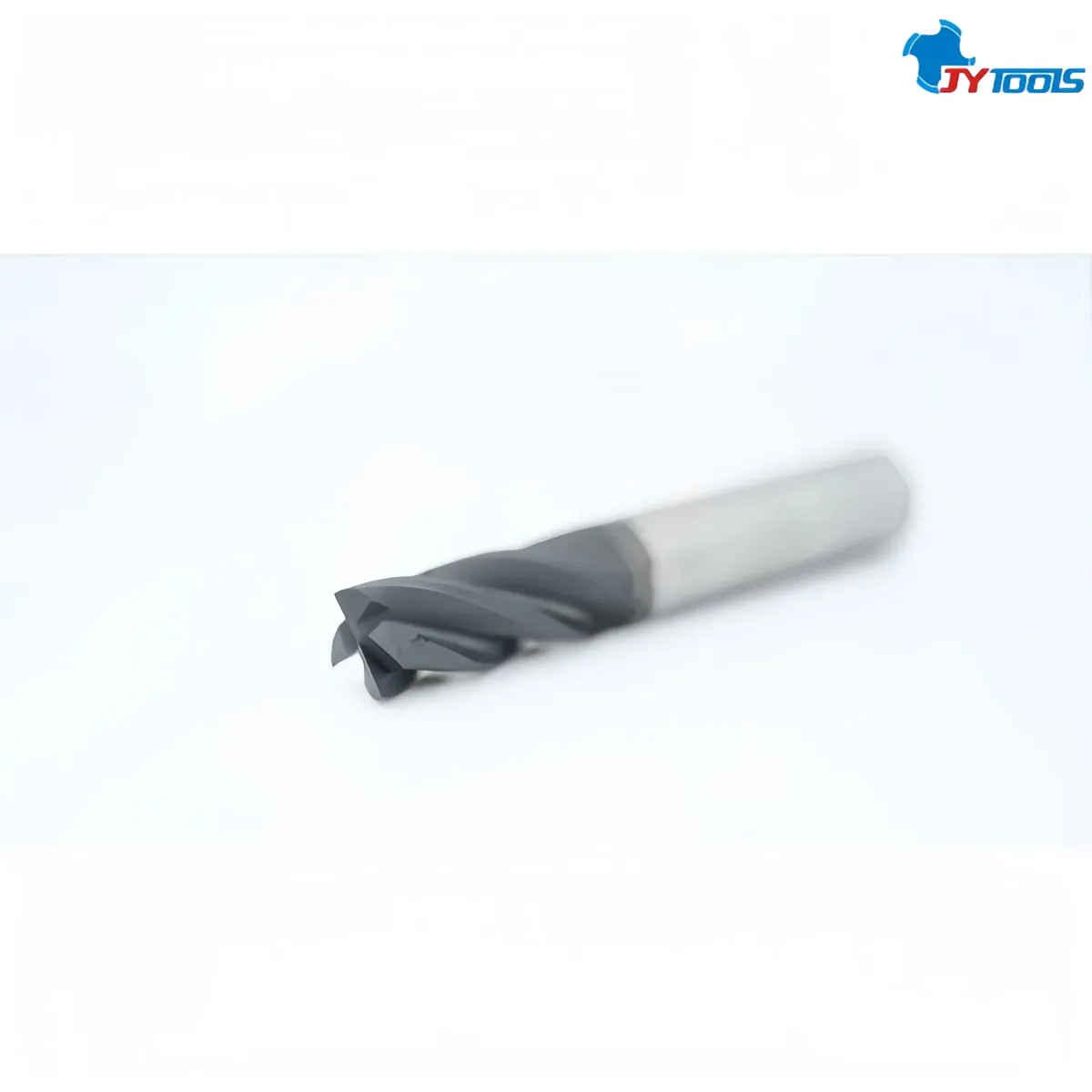

The CFM410 series is a professional-grade end mill designed for efficient and precision machining of carbon fiber reinforced polymer (CFRP) parts. It features a 4-flute, 45° helix angle design with a nano-diamond coating and a high-rigidity, ultra-fine grain cemented carbide substrate. Combining exceptional wear resistance, ultra-low cutting resistance, and excellent anti-delamination performance, it is an ideal choice for machining contours, grooves, and holes in carbon fiber parts for industries such as aerospace, new energy, and automotive. It provides an efficient and stable solution for machining your carbon fiber reinforced polymer (CFRP) and glass fiber reinforced polymer (GFRP) parts, making it a good choice for various applications.
| Part number | CFM410500A |
|---|---|
| Material | Ultrafine Tungsten Carbide Alloy |
| Product Name | 4-Flute Tungsten Carbide End Mill – 45º |
| OEM / ODM | Made to your samples or drawings |
| Specifications | Ø6.0 × 20L × Ø6.0 × 4X |
| Packaging (mm) | 12.5 × 12.5 × 69L |
| Blade Diameter D | Ø6.0mm |
| Blade Length H | 20.0mm |
| Shank diameter d | Ø6.0mm |
| Overall Length L | 50.0mm |
| Coating | TiXSiN |
| MOQ | 2 pcs |
| Lead time | 1 week |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
Utilizing cemented carbide with a grain size ≤0.8μm and a substrate hardness of HRC65, it combines high rigidity and toughness, offering 50% better resistance to chipping compared to ordinary tools.

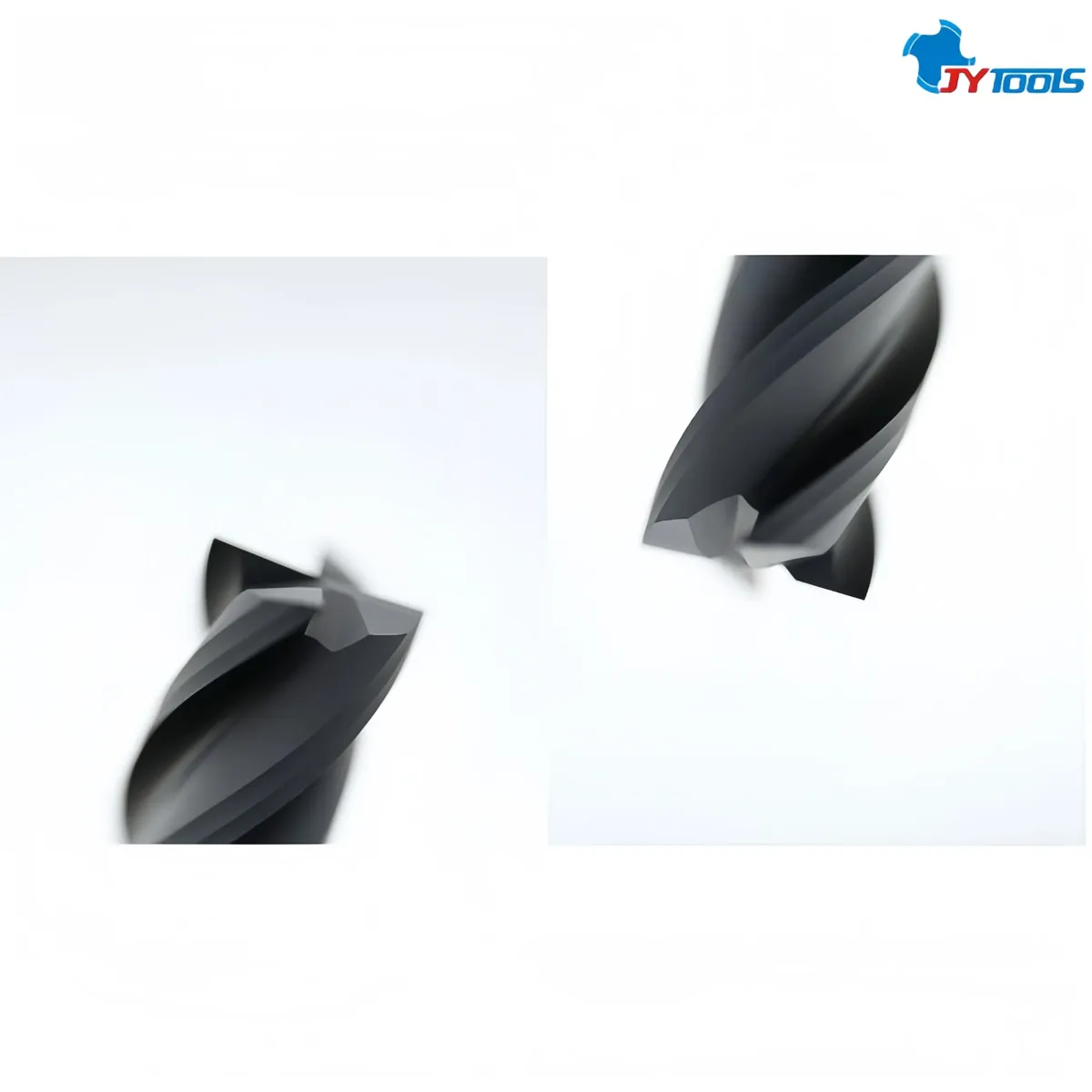

Symmetrically distributed four flutes ensure uniform distribution of cutting force, improving vibration suppression by 40% and achieving a surface finish of Ra0.4μm or less, reducing fiber delamination and burrs.
Surface hardness HV8000, a friction coefficient as low as 0.15, and wear resistance 10-15 times that of ordinary cemented carbide tools, significantly extending tool life.
Enables progressive smooth entry, reducing impact on carbon fiber materials, effectively suppressing fiber delamination and tearing, and significantly improving machining quality.
The chip flute space is 35% larger than that of ordinary end mills, improving chip removal efficiency by 40%, avoiding chip clogging and secondary scratches on the workpiece.
Plasma-assisted deposition technology improves coating adhesion by 30%, preventing coating peeling during high-speed cutting.
Machining of carbon fiber parts contours and grooves for aerospace and new energy vehicles.
Tell us the composite or plastic you machine and the part thickness. We supply standard and custom cutters made to your samples or drawings.
