60° Metric Thread

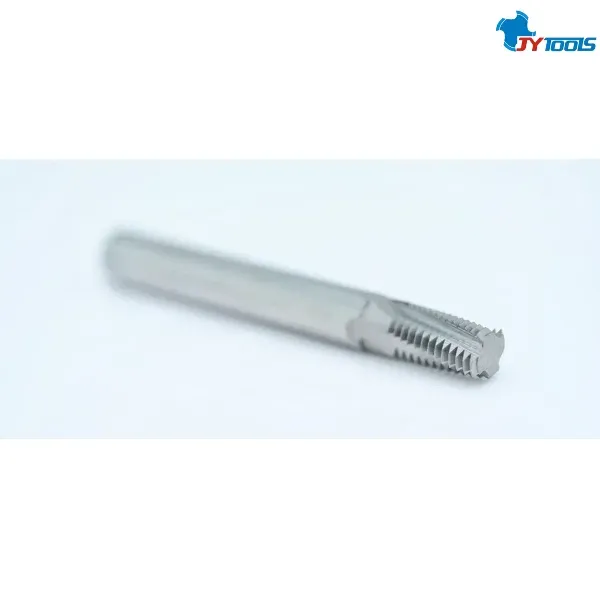

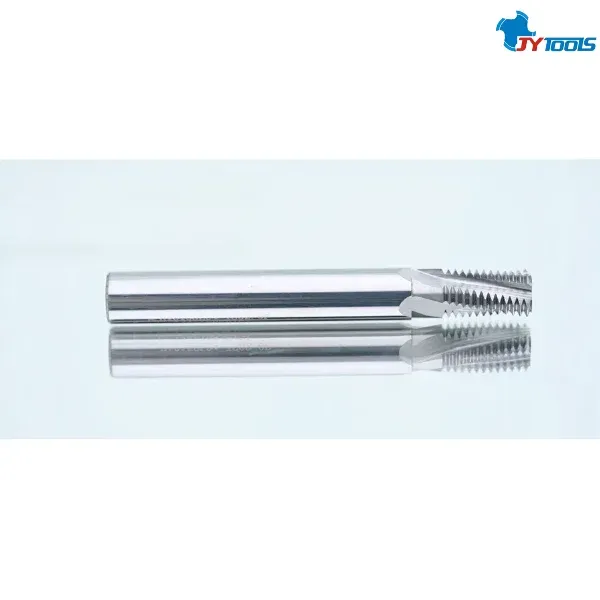

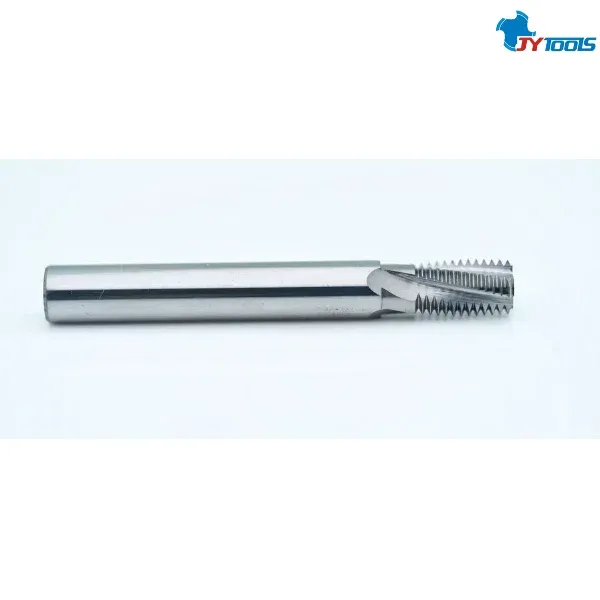

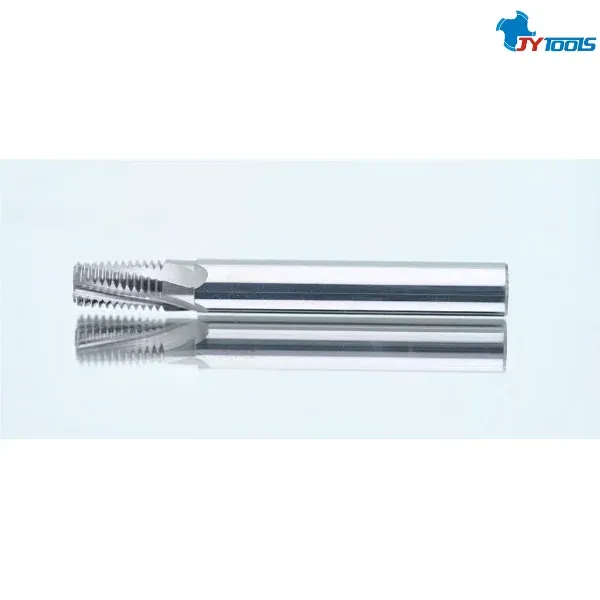

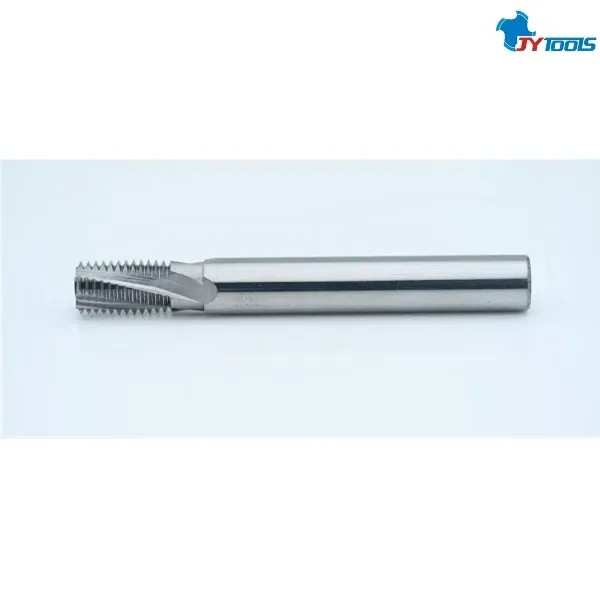

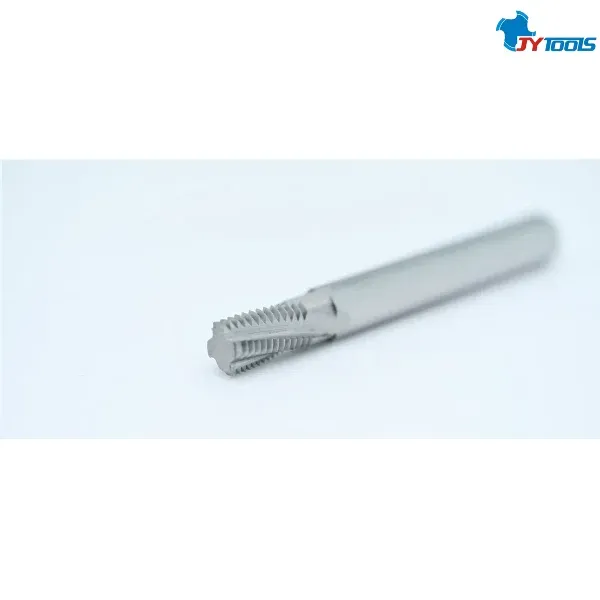

The TM510 series is a professional-grade, versatile thread milling cutter designed for the precision machining of 60° metric (M-series) threads in accordance with the DIN 13 standard. Featuring an ultra-fine grain carbide substrate, it enables efficient and precise machining of 60° metric threads, making it an ideal choice for mold making, aerospace, automotive, and general machining applications. This series offers a range of high-performance coatings, ensuring exceptional machining efficiency, superior surface finish, and consistent, long tool life across various materials with hardness levels below 28 HRC. It meets stringent reliability requirements for machining M4–M20 threads in steel components used in aerospace sensors and navigation equipment.
| Product Series | TM511 Series |
|---|---|
| Tool base material | Ultrafine-grained tungsten carbide |
| Product Name | Micro thread milling cutter |
| OEM / ODM | Made to your samples or drawings |
| Specifications and Model | M10 × 1.5P × D4.0 × 50L |
| Lead time | In stock / 2 weeks |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
Strictly adheres to the DIN 13 standard and meets the threading requirements for general industrial components; achieves thread formation in a single pass, boosting machining efficiency by 40% compared to traditional taps.
Features HRC65-grade ultrafine-grained carbide with 50% improved chipping resistance, enabling stable machining of general-purpose materials such as steel, aluminum alloys, and stainless steel.
Thread pitch accuracy is maintained within ±0.008 mm, and surface finish reaches Ra ≤ 0.3 μm, meeting tolerance requirements for general industrial parts.
The edge radius is precisely controlled at 0.005 mm, balancing sharpness with wear resistance to minimize edge chipping and extend tool life.
Utilizing a vacuum ion plating process, coating adhesion is increased by 40%, preventing coating detachment that could compromise machining accuracy.
The direct action of the cutting fluid reduces friction between the cutting edge and the workpiece, improves the quality of the machined surface, and reduces tap wear.
The cutting edge radius is precisely controlled at 0.003 mm, balancing sharpness and wear resistance, reducing edge chipping, and ensuring machining consistency.
Featuring an eccentric cutting design, it eliminates the need for pre-drilling a center hole and allows for the direct machining of blind-hole threads, thereby reducing process steps and increasing efficiency.
Send the thread standard, size and tolerance class. We supply standard taps and thread mills, plus special threads made to your samples or drawings.
