American thread taps

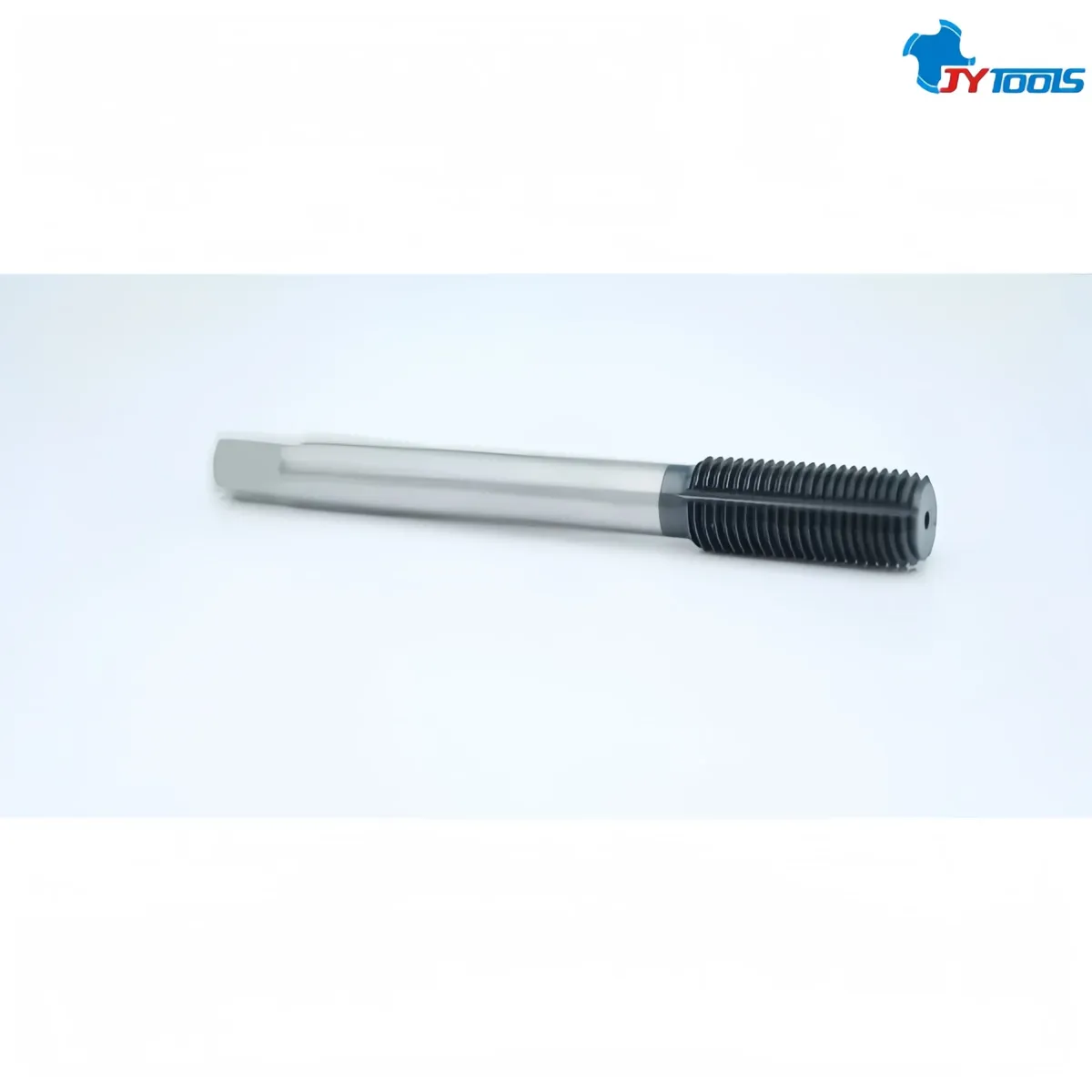

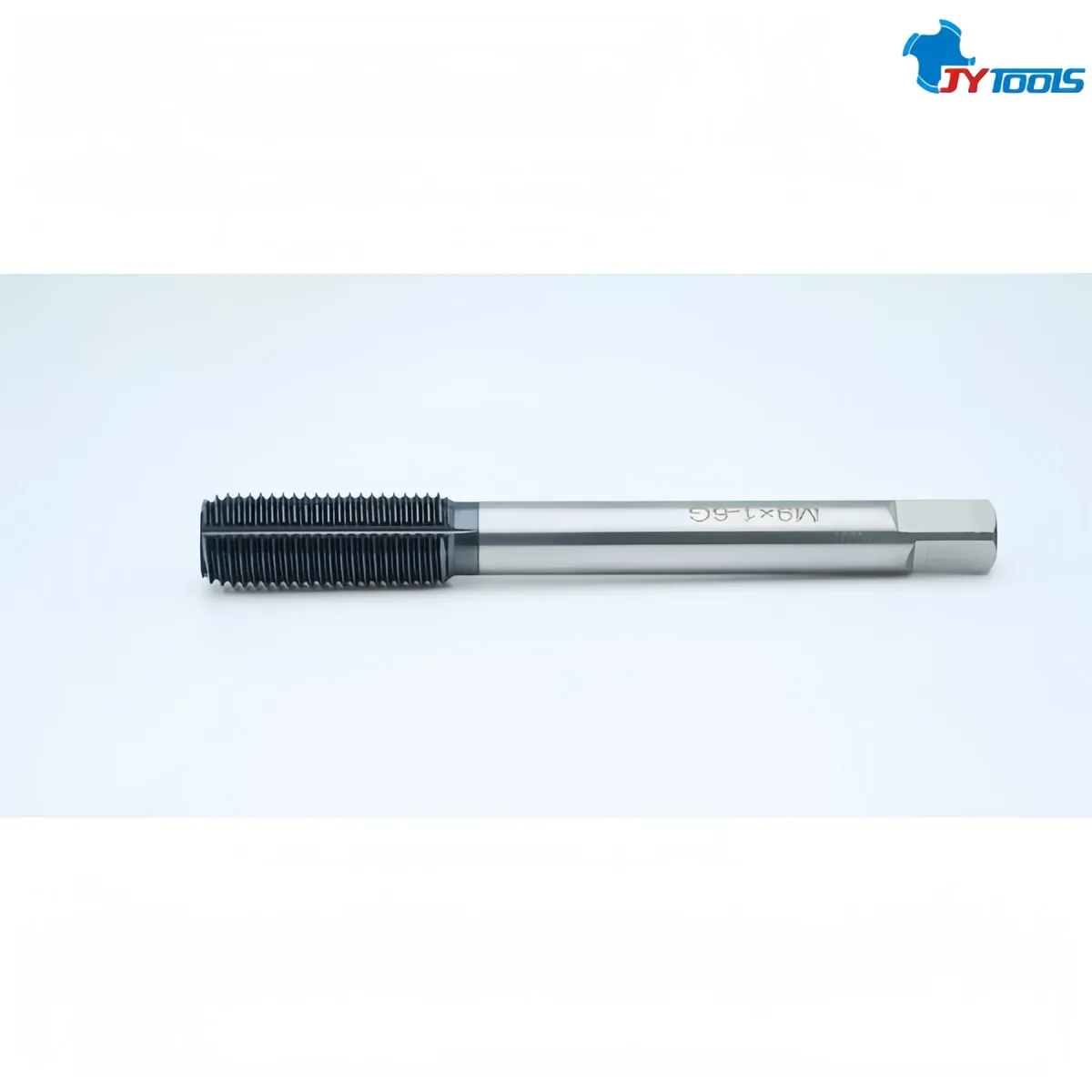

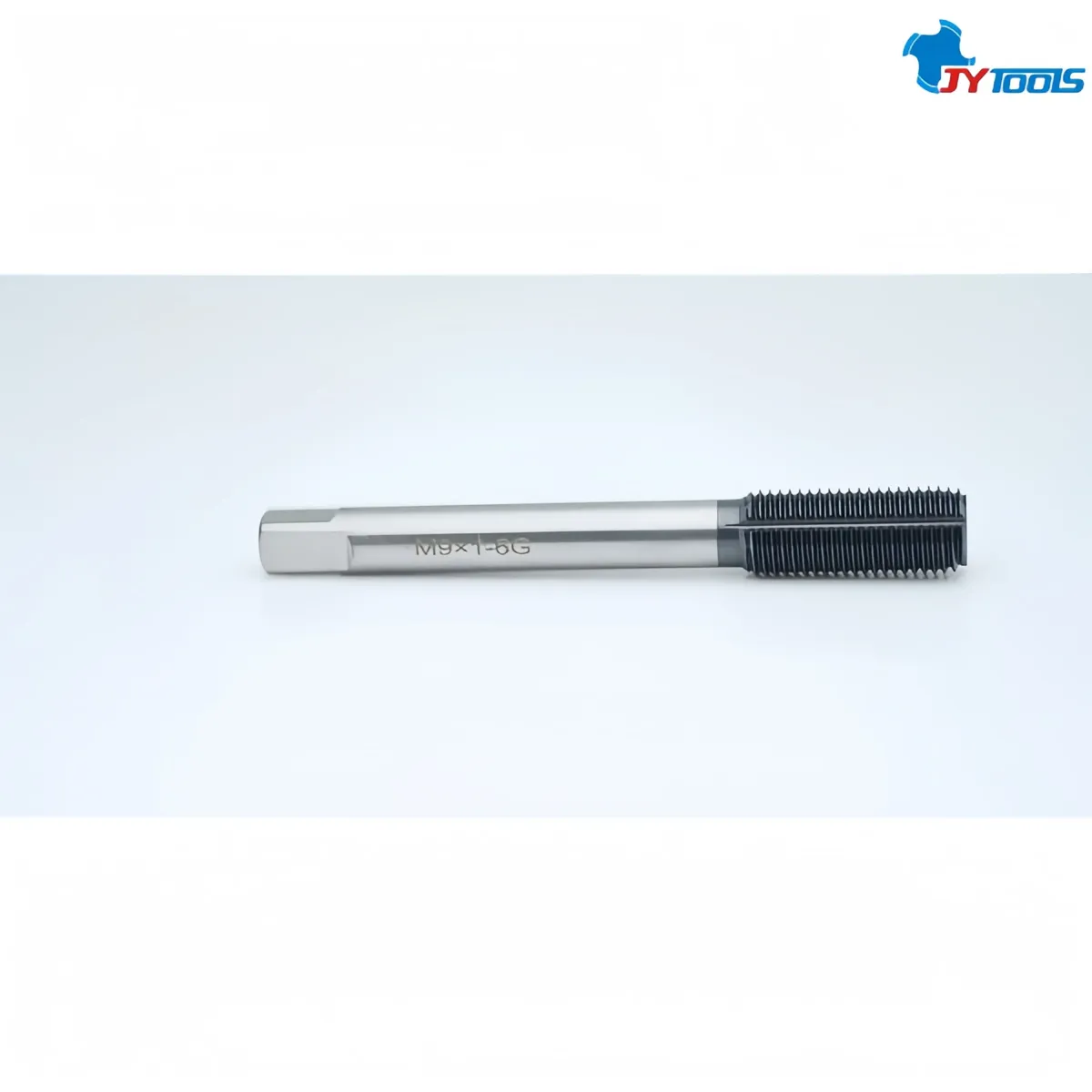

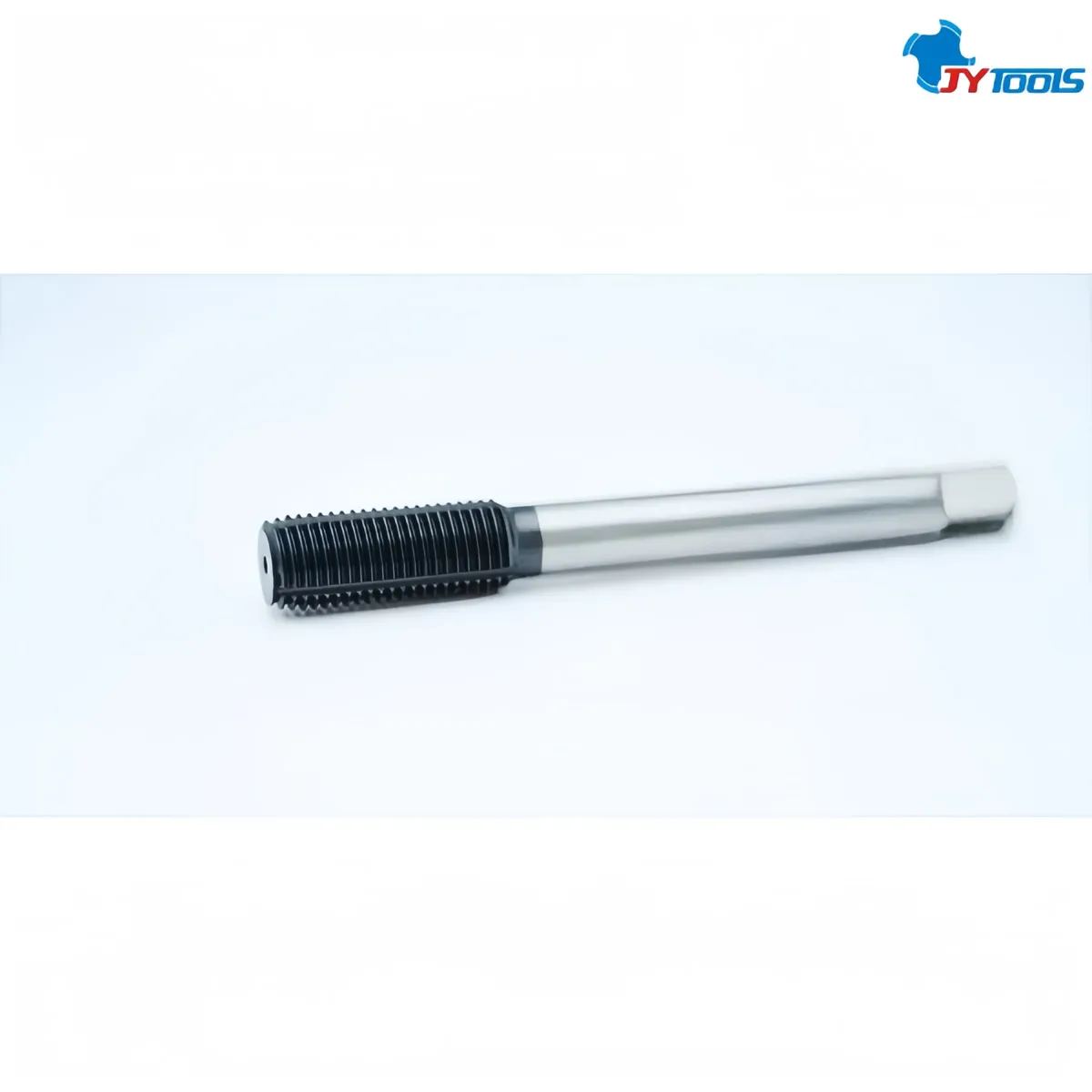

The HP105U is a professional-grade forming tap specifically designed for chipless tapping of ANSI/ASME B1.1 standard threads. During processing, it cold-works the material, resulting in a denser, smoother thread surface, reducing surface roughness and improving thread performance. It significantly improves machining quality and production efficiency, especially with hard materials, precision workpieces, or complex processes. It is particularly suitable for applications in the automotive, aerospace, machinery, and hydraulic industries where high precision of metric or imperial threads is required. It performs exceptionally well in high-efficiency machining and with complex materials. Because there is no cutting process, the threads produced by forming taps are burr-free, making them suitable for workpieces requiring high surface quality.
| Part number | HP105U |
|---|---|
| Material | HSS / HSS-E / HSS-E-PM |
| Product Name | American Standard Thread Taps/Extrusion Thread Taps |
| OEM / ODM | Made to your samples or drawings |
| Specifications | May 16-19 UNC |
| Lead time | 2 Weeks |
| Packaging (mm) | 15 × 15 × 100L |
| Thread Diameter D1 | 5/16-19UNC |
| Cut-out Length L3 | 25.0mm |
| Shank diameter D | Ø6.0mm |
| Overall Length L | 110mm |
| Thread Tolerance Grade ISO | 2B |
| Coating | TiN |
| MOQ | 2 pcs |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
Utilizing high-precision thread grinding, the thread profile accuracy is controlled within ±0.01mm, and the thread surface finish can reach below Ra0.2μm. Thread connection strength is 20% higher than that of cutting taps.
Threads are formed by plastic deformation of the workpiece material through extrusion, generating no chips and avoiding chip clogging and workpiece scratches. This makes them especially suitable for tapping blind holes.
High-speed steel (HSS) and high-performance high-speed steel (HSSE) base materials, combining high toughness and red hardness, suitable for tapping general-purpose plastic materials such as aluminum alloys and low-carbon steel pipes.
Threads are formed by plastic deformation of the workpiece material through extrusion, without the generation of chips, avoiding chip clogging and workpiece scratches, especially suitable for blind hole tapping.
Extrusion taps hold a vital position in modern manufacturing due to their advantages such as high-quality thread formation, increased strength, long tool life, and chipless machining. They are particularly advantageous in scenarios requiring high efficiency, environmental friendliness, and high precision machining.
Due to the lower cutting force, the required amount of lubricant is usually lower, further reducing pollution and costs in production.
In blind hole machining, it prevents chip accumulation at the bottom of the hole, improving machining efficiency and quality.
Extrusion tapping produces no cutting waste, reducing environmental impact and making it more environmentally friendly.
Send the thread standard, size and tolerance class. We supply standard taps and thread mills, plus special threads made to your samples or drawings.
