DIN13 German standard

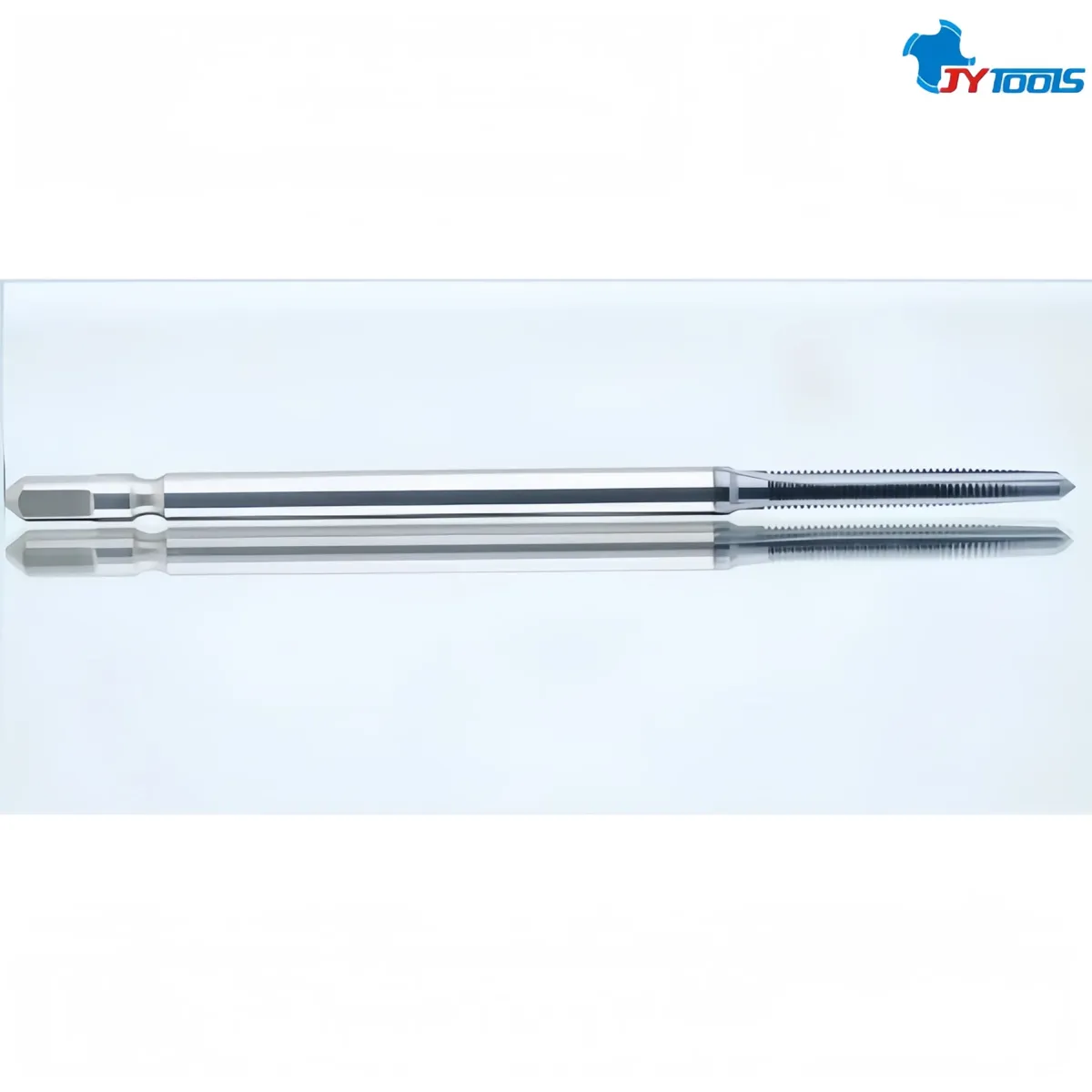

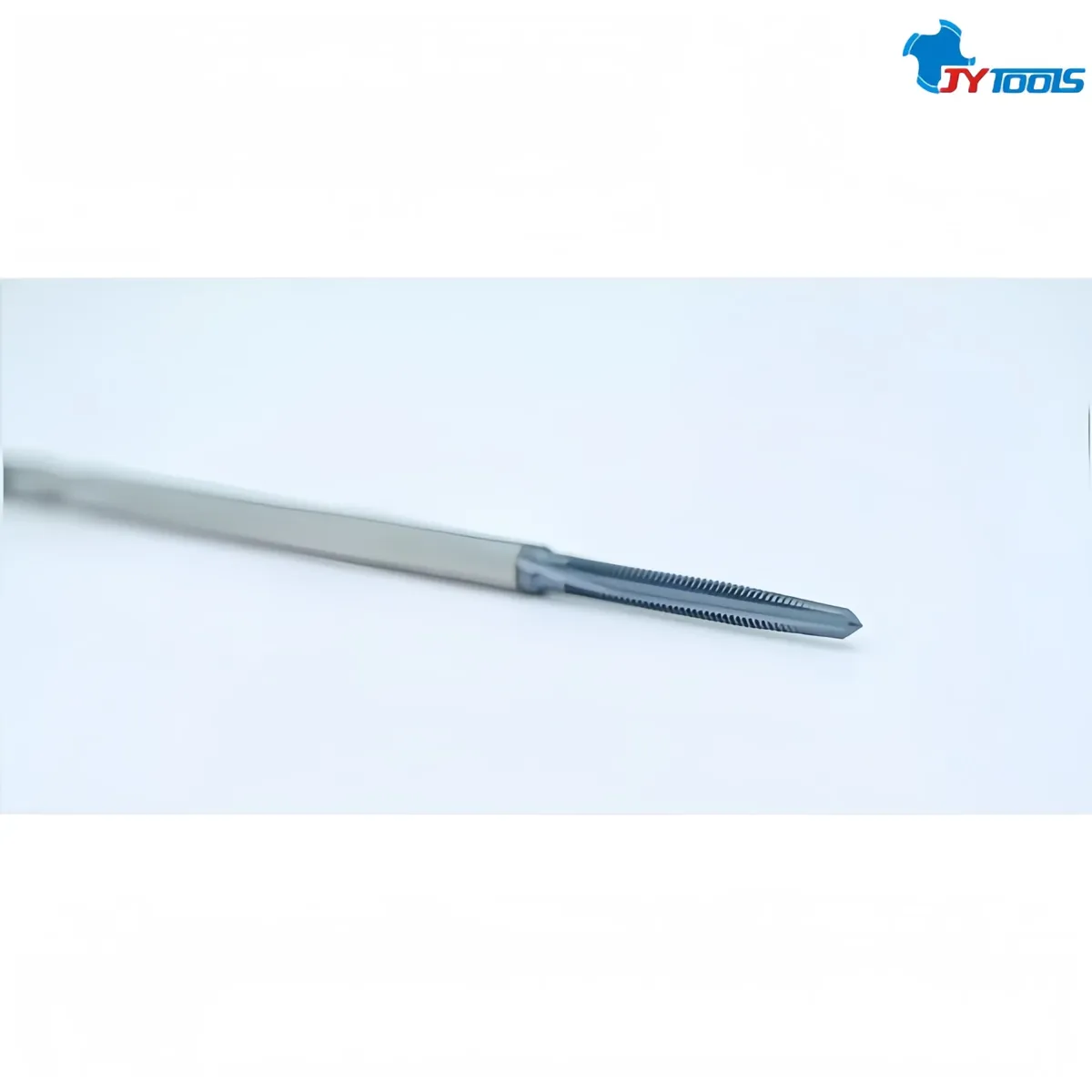

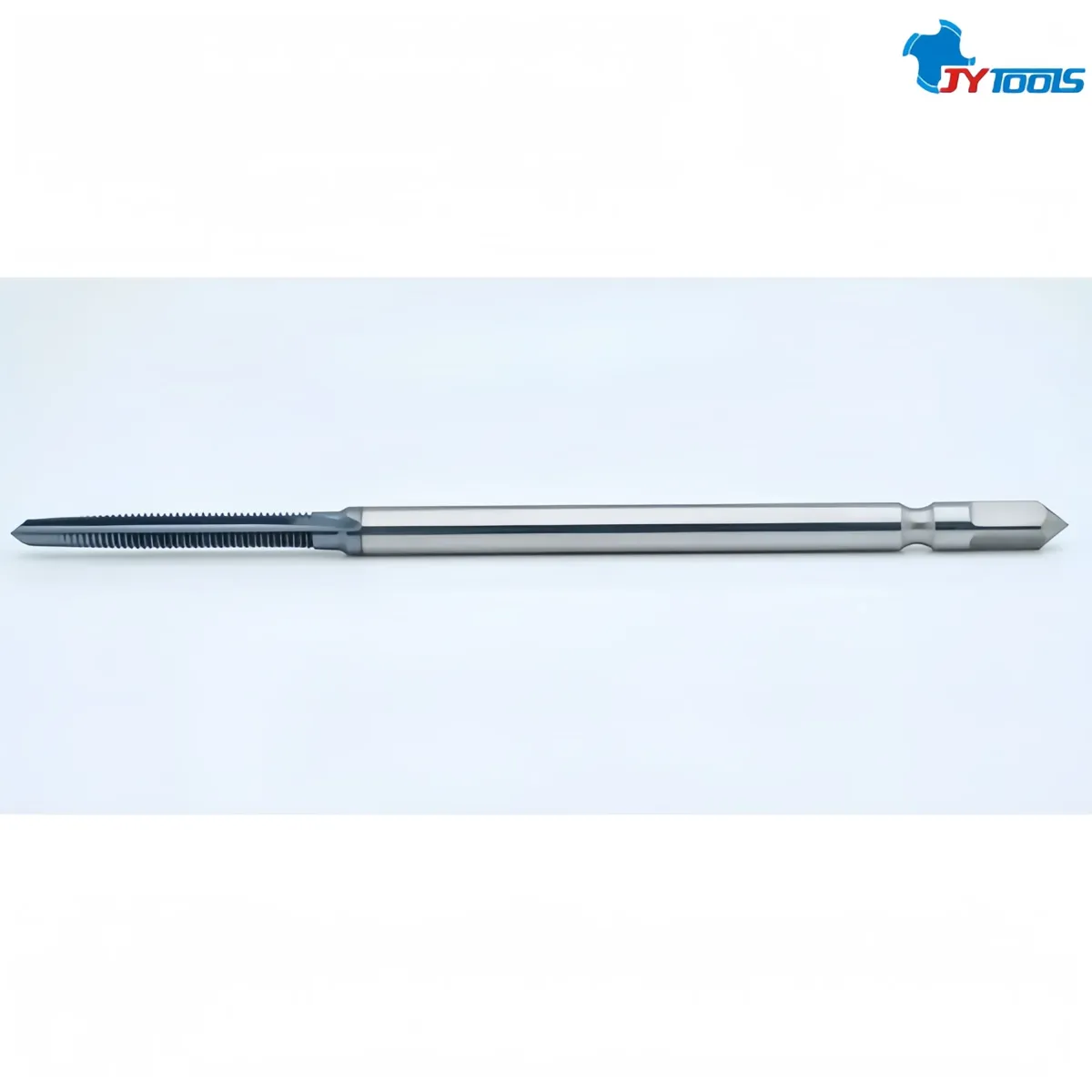

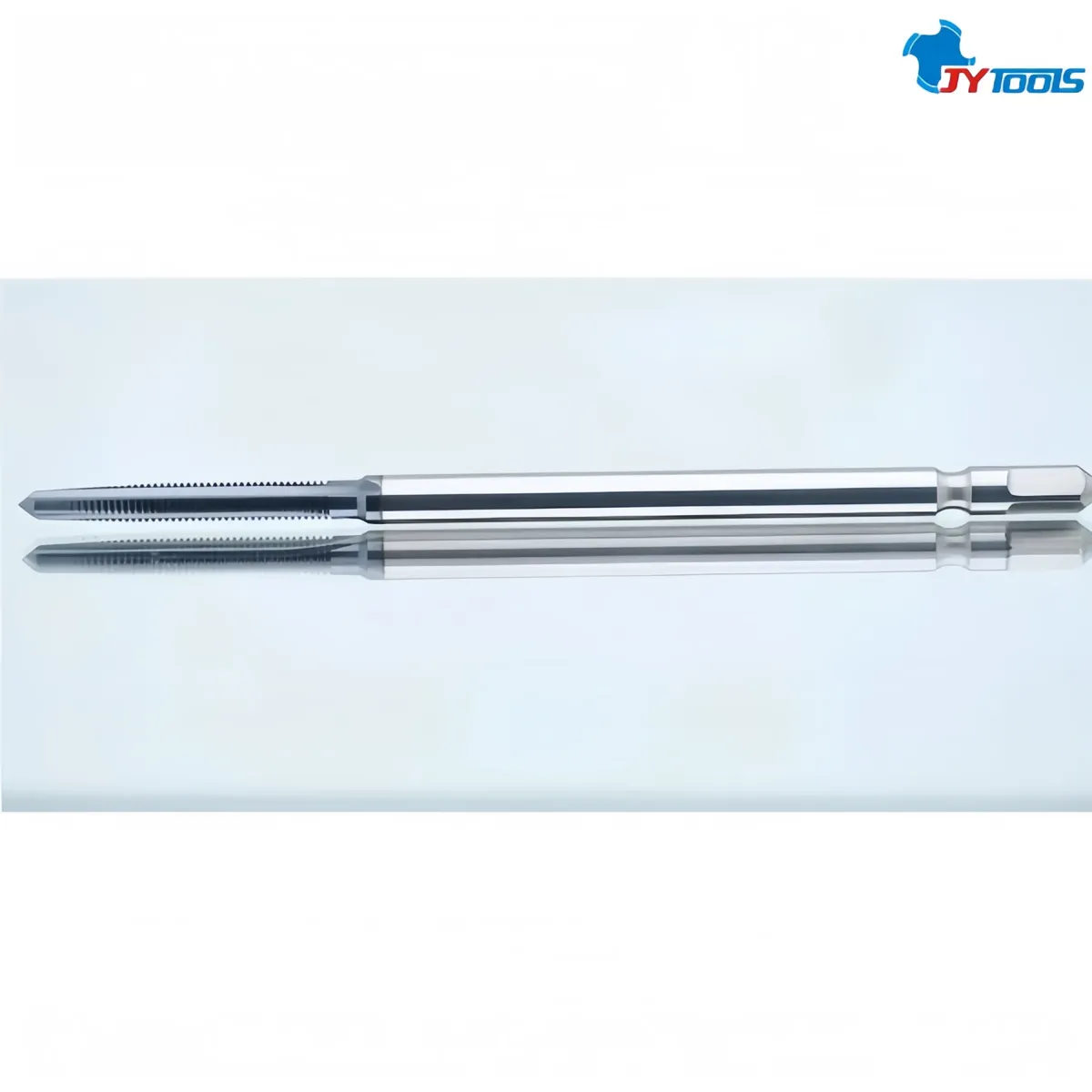

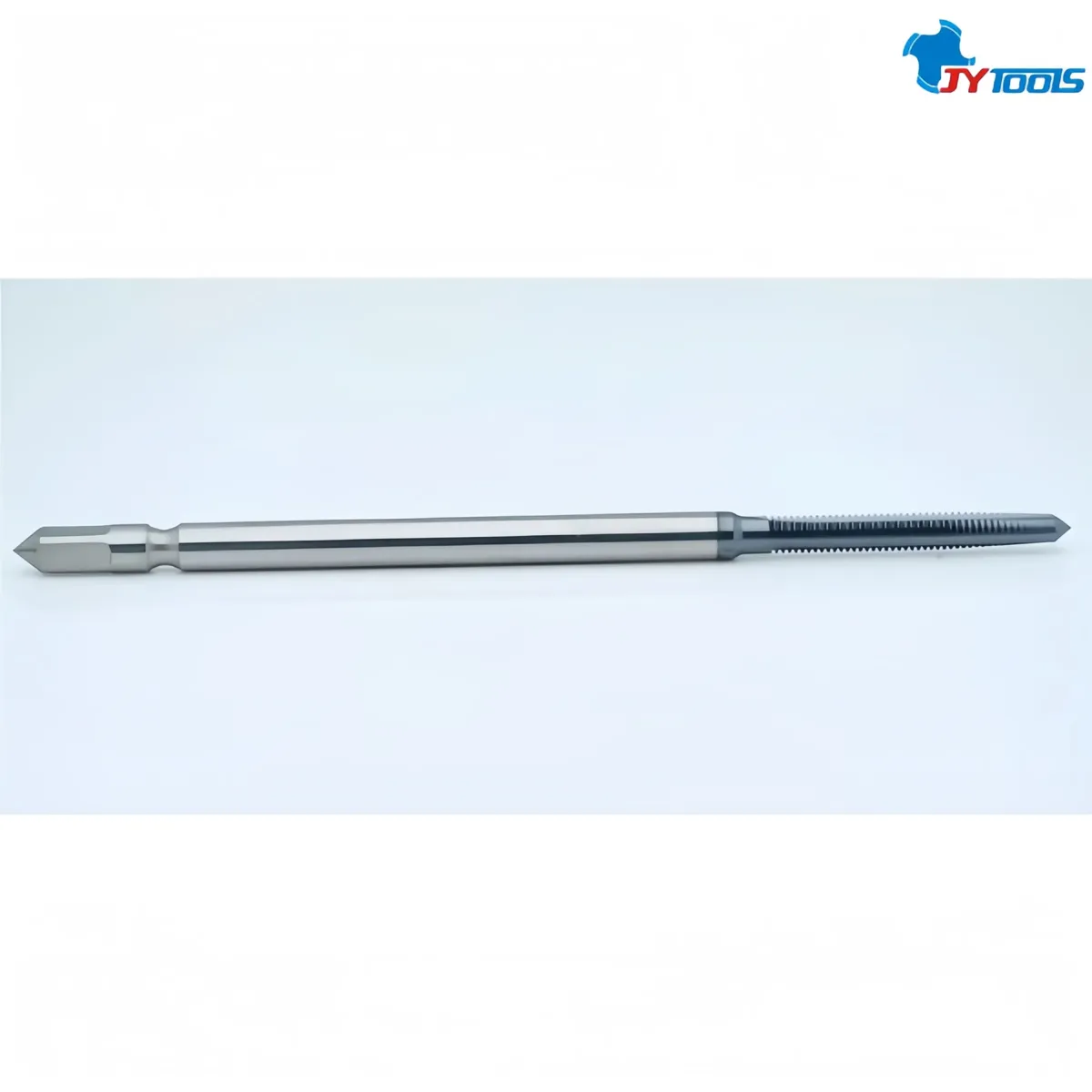

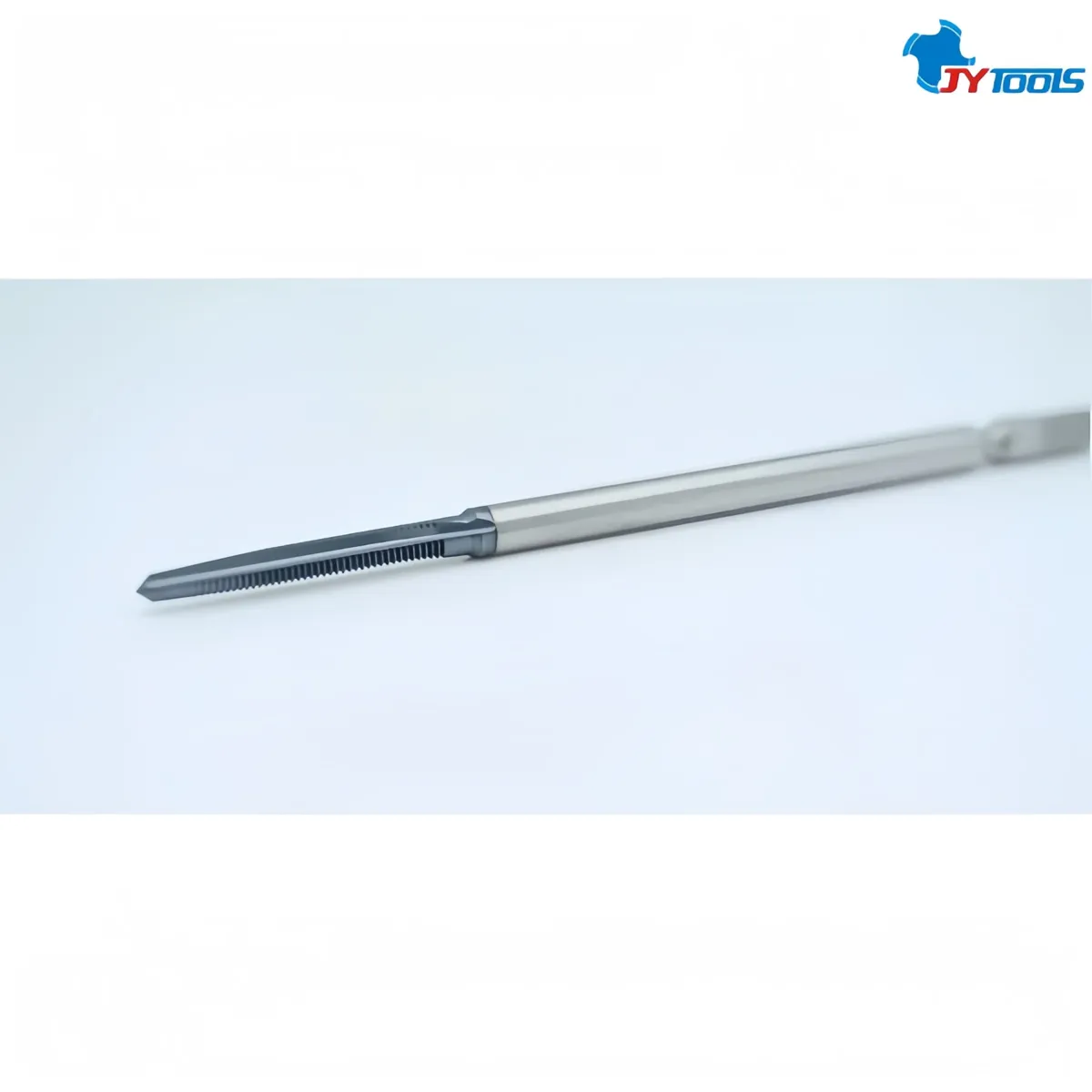

The FT102 carbide cutting tap, with its excellent chip removal performance, high hardness and wear resistance, and machining efficiency, is particularly suitable for thread machining of high-strength, difficult-to-machine materials. It not only significantly improves machining efficiency and quality but also reduces machining failures and tool wear. The carbide straight flute cutting thread tap is a high-performance tapping tool combining carbide material and composite coating technology. It is widely used in high-efficiency, high-precision thread machining, especially showing significant advantages in scenarios involving difficult-to-machine materials and high-strength workpieces. It performs exceptionally well in high-efficiency machining and complex materials. Carbide taps can easily machine difficult-to-machine materials such as stainless steel, titanium alloys, and nickel-based alloys, maintaining high efficiency and high quality.
| Part number | FT102/05MF |
|---|---|
| Material | HSS / HSS-E / HSS-E-PM / VHM |
| Product Name | DIN Standard Thread Taps/Straight Fluid Cutting Taps |
| OEM / ODM | Made to your samples or drawings |
| Specifications | M6.0 × 1.0P |
| Lead time | 2 Weeks |
| Packaging (mm) | 6 × 6 × 100L |
| Thread Diameter D1 | M6 × 1.0P |
| Cut-out Length L3 | 26.0mm |
| Shank diameter D | Ø6.0mm |
| Overall Length L | 88.0mm |
| Thread Tolerance Grade ISO | H6 |
| Coating | TiCN |
| MOQ | 2 pcs |
| Origin | Shenzhen, China |
Design details engineered for accuracy, tool life and process stability.
Utilizing high-precision thread grinding, the thread profile accuracy is controlled within ±0.01mm, and the thread surface finish can reach below Ra0.4μm, ensuring the accuracy of German standard thread connections.
TiAlN, TiCN, TAD, TiN, DLC, and other coatings are available, with a maximum hardness of HV3400 and a friction coefficient as low as 0.15. Tool life is extended by 2-3 times compared to uncoated taps.
Carbide straight flute taps hold a vital position in modern manufacturing due to their advantages such as high-quality thread formation, enhanced strength, long tool life, and chip-free machining. They are particularly advantageous in scenarios requiring high efficiency, environmental friendliness, and high precision machining.
Carbide taps are typically equipped with highly efficient chip removal flute structures (such as spiral or straight flutes) to quickly remove chips during machining and prevent chip clogging.
Straight flute taps typically feature higher manufacturing precision to ensure tight tolerances and thread quality even at minute dimensions.
Carbide taps can easily machine difficult-to-machine materials such as stainless steel, titanium alloys, and nickel-based alloys, maintaining high efficiency and quality.
The high rigidity of carbide materials and the auxiliary cooling technology of internal cooling technology reduce the risk of tap breakage due to thermal fatigue or chip clogging.
Optimized cutting edge sharpness and an internal cooling system provide excellent lubrication and cooling conditions, ensuring a burr-free thread surface and high smoothness.
Straight flute metric thread taps are suitable for the following applications.
Machining threads on high-strength materials such as titanium alloys and nickel-based alloys.
Suitable for efficient thread machining of high-strength steel parts.
Suitable for thread forming of hard mold materials.
Suitable for machining precision parts made of stainless steel and high-temperature alloys.
Send the thread standard, size and tolerance class. We supply standard taps and thread mills, plus special threads made to your samples or drawings.
